Automatic Hydraulic Pipe Bender , Green Hydraulic Steel Pipe Bender Machine

Automatic Hydraulic Pipe Bender , Green Hydraulic Steel Pipe Bender Machine
Automatic Hydraulic Pipe Bender , Green Hydraulic Steel Pipe Bender Machine Automatic Hydraulic Pipe Bender , Green Hydraulic Steel Pipe Bender Machine

Large Image :  Automatic Hydraulic Pipe Bender , Green Hydraulic Steel Pipe Bender Machine

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE
Model Number: 1066
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden carton or at client's request
Delivery Time: 35 days
Supply Ability: 200000-300000
Detailed Product Description
Condition:: New Usage:: Bending Pipe
Bending Radius:: 2.5D ≤ R ≤ 7D Name:: Pipe Bending Machine
Wall Thickness:: 10-50mm Weight:: 82 Tons
After-sales Service: Engineers Available To Service Machinery Overseas Material:: Carbon Steel, Alloy Steel, Straight Seam Welded
Color: Green Product Name: Hydraulic Used Pipe Bending Machine
High Light:

hydraulic tube bending machine

,

hydraulic steel pipe bender

Hydraulic Used Pipe Bending Machine

Product Description

1. The largest elbow diameter is 1066mm. The minimum bend diameter is 325mm.
2, the wall thickness is 10-50mm
3, bending radius 2.5D ≤ R ≤ 7D
4, bending angle 0-90 °
5. Thinning pipe wall thinning rate: <10%, elbow ellipticity: <10%, wave degree: heat h/<2%, flatness: L=500<3, bending radius tolerance <20mm, bending angle The error is ±1°.
6, curved pipe material
Carbon steel seamless pipe material: 20G, A106B, A106C.
Alloy steel seamless pipe material: 355P12, 15CrMo, 12Cr1MoV, P22, P91, WB36 and so on.
Straight seam welded pipe material: Q235B, Q345B, X42, X52, X60, X65, X70, X80, etc.
7, the fixture adapts to the model: diameter 1066, 920, 820, 720, 630.
8, weight: 82 tons

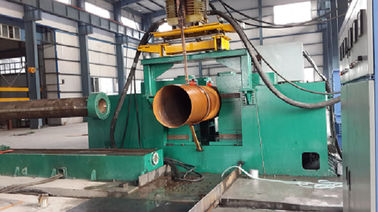

Detailed Image:

Automatic Hydraulic Pipe Bender , Green Hydraulic Steel Pipe Bender Machine 0

1. Main cylinder parameter
2. Main cylinder thrust: 200 tons (two)
3. Structure: Piston structure, front and rear flanges
4. Test pressure: 31.5Mpa
5. Working pressure is: 0-25Mpa
6. Main cylinder inner diameter: 250mm
7. Main cylinder outer diameter: 273mm
8. Piston rod diameter: 190mm
9. Main cylinder material: 45# steel
10. Main cylinder effective stroke: 10m



Our company

Our company is a professional manufacturer of pipe fitting machines, such as hydraulic hot forming elbow machine, hydraulic cold forming elbow machine, hydraulic cold forming tee machine, shot blasting machine.

We have exported to many countries, such as, Russia, Egypt, Malaysia, India, Turkey, Indonesia, etc.

We have overseas office in Mumbai, India. Our marketing person and technician stay in abroad for 7-8 months each year for after sale service. Machine guarantee is one year. If our clients machine has problem, our after sale service person will come and help you solve the problem as quickly as possible.
