Product Details:
Payment & Shipping Terms:
|
Product Name: | ASME Seamless And Semi Seamless Butt Weld Copper Bend Pipe Fittings | Material: | Carbon Steel,alloy Steel Stainless Steel,copper |
---|---|---|---|
Connection:: | Butt Weld | Size:: | 1/2"-60" |
Application:: | Connect Pipes | Packaging:: | Pallet/ Wooden Box |
Standard Of Copper Pipe Fittings:: | ASME, DIN,JIS | Head Code:: | Equal Round |
Technics: | Induction Forming | Name: | Copper Elbow |
Highlight: | seamless buttweld fittings,carbon steel buttweld fittings |

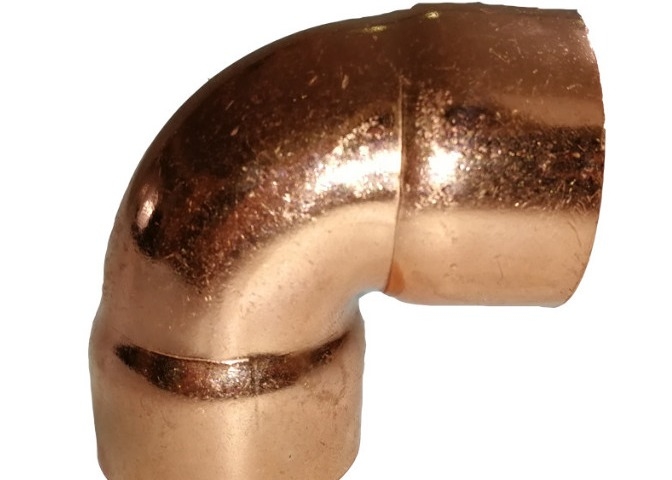

ASME Seamless And Semi Seamless Buttweld copper Bend Pipe Fittings
Product Description:
copper Pipe Fittings |
Thickness | sch10,sch20,sch30,std,sch40,sch60,xs,sch80, sch100,sch120,sch140,sch160,xxs |
Standard | ASME ASTM JIS DIN |
Size | 1/2”-120” |
Surface treatment | bevelling,shot blasting,marking,painting according to customer requirement |
Packaging | fabric bag & wooden box & pallet |
Delivery | 10-15days |
Product Show
Company information:
Our company is producer and exporter of all kinds of copper pipe fittings.Our city is the hometown of copper pipe fittings.everyday lots of containers of fittings are dispached all over the world,such as Russia,Egypt,Malaysia,India,Turkey,Indonesia,Jordon and some other overseas markets.Our company monthly dispach around 50containers fittings.We provide our customers with one-stop service from order to delivery.
Seamless elbow forming method:
1. Forging and pressing method: stretch the end or part of the pipe with the forging machine, so as to reduce the outside diameter. Commonly used forging machines include rotary type, connecting rod type and roller type.
2. Rolling method: generally without mandrel, suitable for inner round edge of thick wall tube.The core is placed in the tube, and the roller is used for edge processing.
3. Stamping method: expand the tube end to the required size and shape with tapered core on the press.
4. Bending forming method: there are three methods commonly used, one method is called stretching method, another method is called stamping method, the third roller method, there are 3-4 rollers, two fixed rollers, an adjustment roller, adjust the fixed roller distance, the finished pipe is bent.
5. Bulking method: one is to place rubber inside the tube and compress it with punches to make the tube protruding and forming;Another method is hydraulic bulging, in which a liquid is filled in the middle of the tube, and the liquid pressure pushes the tube into the desired shape. This method is used in most of the production of bellows.
What is a bend?
In piping systems, elbow is the piece of pipe that redirects the pipe.According to the Angle, there are 45° and 90°180° are the three most commonly used, and other abnormal Angle elbows such as 60° are also included according to the engineering needs.Elbow materials are cast iron, stainless steel, alloy steel, malleable cast iron, copper, non-ferrous metals and plastics.Connection with the pipe: direct welding (the most common way) flange connection, hot melt connection, electric fusion connection, thread connection and socket type connection.According to the production process can be divided into: welding elbow, stamping elbow, push elbow, casting elbow, butt welding elbow and so on.Other names :90 degree bend, right Angle bend, love and bend, etc.
