Payment & Shipping Terms:
|Product Name:||A234 ASME Seamless And Erw Buttweld Carbon Steel Reducer Pipe Fittings||Material:||Carbon Steel,Alloy Steel|
|Standard Of Carbon Steel Pipe Fittings::||ASME, DIN,JIS||Head Code::||Round|
|Technics:||Hot Process||Name:||Carbon Steel Pipe Fitting|
seamless buttweld fittings,
butt weld pipe fittings

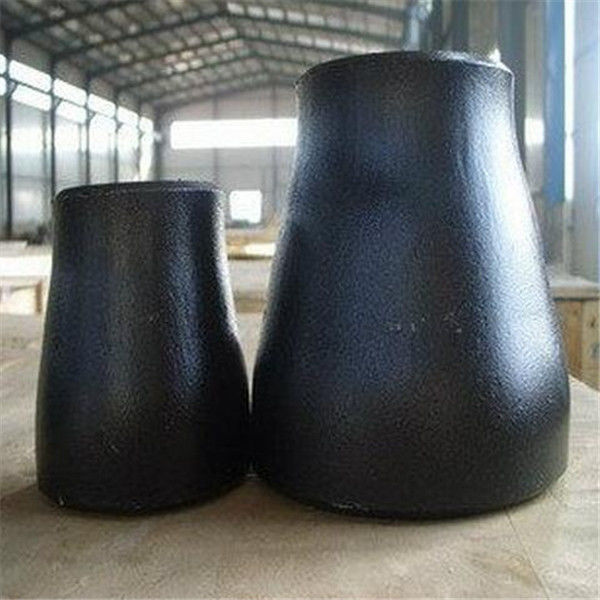

A234 ASME Seamless And Erw Buttweld Carbon Steel Reducer Pipe Fittings
Butt Welded reducer is One of the chemical pipe fittings used for the connection between two different pipe diameters. According to the different shapes, Butt Welded reducer is divided into concentric heads and eccentric heads.
|Carbon Steel Pipe Fittings|
|Product||45/90/180degree elbow / tee / cap / reducer / bend|
|Standard||ASME B16.9 ASTM JIS DIN|
|Surface treatment||bevelling,shot blasting,marking,painting according to customer requirement|
|Packaging||fabric bag & wooden box & pallet|
Our company is producer and exporter of all kinds of carbon steel pipe fittings.Our city is the hometown of carbon steel pipe fittings.everyday lots of containers of fittings are dispached all over the world,such as Russia,Egypt,Malaysia,India,Turkey,Indonesia,Jordon and some other overseas markets.Our company monthly dispach around 50containers fittings.We provide our customers with one-stop service from order to delivery.
The size head (reducing pipe) is a fitting used for pipe diameters.The forming process usually adopted is reducing diameter pressing, expanding diameter pressing or reducing diameter plus expanding diameter pressing.
A. Shrink/enlarge forming
The reduction process of the size head is to put the tube blank which is equal to the diameter of the big end of the size head into the forming die.According to the diameter of reducing pipe, it can be divided into one pressing or multiple pressing.
B. Stamping forming
In addition to using steel tube as raw material to produce the size head, the size head of part of the specification can also be produced by stamping process of steel plate.The shape of the drawing die is designed according to the size of the inner surface of the head.
Stainless steel size head application
1. Application in metallurgy and electric power industry
Metallurgical and electric power industries need to consume a large number of metal pipes every year to transport coal powder, ash, mud, lime gypsum slurry, etc.Ceramic composite pipe is adopted to replace other pipes, which is characterized by high wear resistance, long service life, convenient installation and remarkable economic benefit.
2. Application in mining and coal industry
(1) mine: mine filling, concentrate powder and tailings transport have seriously damaged the pipelines. The service life of the previously used powder conveying pipelines, such as panzhihua and daye mine, is less than one year.
(2) coal: wet method is generally adopted for coal preparation and long-distance pipeline transportation, which requires that the conveying pipe is wear-resistant and corrosion-resistant, and can be used as the long-lived conveying pipe with considerable economic benefits.In the process of medium frequency heating boost, cut the pipe to be processed into sections according to the required length and cover the core rod;The inner core head foetus is made into a round body member with a gradual section consistent with the finished product, and it is connected with the core rod with a detachable structure. The boost tube can be formed by moving along the inner core foetus to one position.It enlarges the application range of medium frequency heating boost manufacturing process, simplifies the production process, and increases the variety to meet the construction requirements.
