Product Details:
Payment & Shipping Terms:
|
| Name: | Auto Hot Piercing Seamless Carbon Steel Seamless Pipe Making Machine | Type: | Hot Rolling Piercing |
|---|---|---|---|
| Size: | 33.4 Mm-60.3 Mm | Material: | Carbon Steel |
| Function: | Hot Rolling | Thickness: | Sch 40 Sch 80 |
| Pipe Model: | Pure Seamless | Dimesion: | 120m*24m |
| High Light: | steel tube making machine,pipe production line |
||

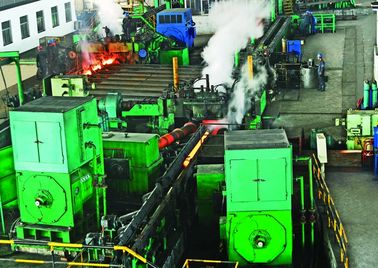

Auto hot Piercing seamless carbon steel Seamless Pipe Making Machine
1.1 Application
Making seamless pipe
1.2 Size Range
billet:Diameterф50-ф60 Length:1500-2300
shell pipe Diameter:ф52-ф63 Length:3000- 6000
Product pipe: ф32-ф57 Length:4000-8000
Producing procedure:cutting billet-----heating billet—piercing mill—sizing mill---cooling bed----straightening machine----cutting pipe---marking---Packing
main machine
3.1 LXC50 piercing mill 1set
3.2 275sizing mill 1set
3.23 75straightening machine 1set
4,Main machine Specification
4.1 LXC50 piercing mill
4.1.1Parameter
4.1.1.1Piercing billet :Diameter; ф50-ф60 billet Length1500-2300
4.1.1.2shell pipe:Diameter:ф50-ф63shell pipe Length3000-6000
4.1.2.1Main Power motor350kw-6,IP23
4.1.2.2Main Gear Reducing MachineZL115
4.1.2.3Gear Box:Center distance 400
4.1.2.4universal drive shaftSWC250A*2600
4.1.2. Main roller:roller Diameter ф410,Length L=300,Rotate Speed N=139Dip angle8Degree,roller inlet angle3 Degree,exit angle3.5 Degree；
Enginner will install theHot Rolling Seamless pipe Mill and teach how to use the machine in buyer factory.
One year free of charge gurantee.
