Elbow Hot Forming Machine Induction Heating Elbow Making Machine With Strong Metal Frame Structure

Elbow Hot Forming Machine Induction Heating Elbow Making Machine With Strong Metal Frame Structure
Elbow Hot Forming Machine Induction Heating Elbow Making Machine With Strong Metal Frame Structure
video play

Large Image :  Elbow Hot Forming Machine Induction Heating Elbow Making Machine With Strong Metal Frame Structure

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE
Model Number: GIL60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Stretch film or wooden box for Induction Heating Hot forming elbow machine
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7-15 set per month
Detailed Product Description
Product Name:: Induction Heating System Elbow Hot Forming Machine Size: Uoto 2 Inch
After-sales Serives: Field Installation, Commissioning And Training Bend Radius: 1D-1.5D
Application:: Carbon Steel Elbow,alloy Steel Elbow Keyword:: Hot Forming Elbow Machine
Color:: Red/blue Name: High Frequency Hot Forming Elbow Making Machine Induction Heating Machine
Thickness: Sch40 Sch 80
High Light:

induction elbow machine

,

hydraulic elbow forming machine

Median Frequency Hot Forming Elbow Making Machine induction heating machine

1. Product Description:

Induction Heating Elbow Machine which is use to produce the Carbon Steel Elbow and alloy steel elbow and smaller size the stainless steel elbow. Comparing the Cold Bending Elbow Machine ,Hot Forming Elbow Machine have their special specification . Carbon Steel Elbow Machine use the smaller dimension and higher thickness to produce the less thickness and bigger dimension elbow. While the Cold Pushing Elbow Machine use the same OD and thickness pipe to produce the same size OD and thickness Butt Welded Elbow. And for the Hot Bending Elbow Machine need to cut the pipe in straight angle but the Cold Forming Elbow Machine need to do angle cutting for the raw material pipe.

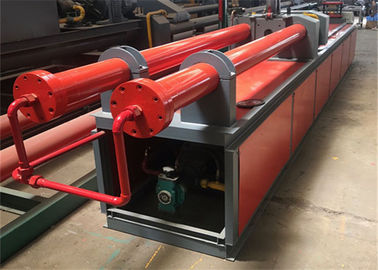

Elbow Hot Forming Machine Induction Heating Elbow Making Machine With Strong Metal Frame Structure 0



1).Machine type:60 type-size from 1/2 to 2inch

2). Main Technical data of machine:

a. Main Ram Cylinder:ID 100mm, stroke:2m OD120MM

b. hydraulic pump:40scy plunger pump Motor: 7.5kw

c. Elbow type:1D, 1.5D, 2D,

d. Design style:

(1)Hydraulic push(2)manual gate(3)High frequency heating system

e. high frequency:40kw

f. Machine Size(mm): L*W*H=4800*800*1100

g. .Machine weight: Around 1000KGS

h. valve flow:100l/m (pipe connection)



2. Installation

Elbow Hot Forming Machine Induction Heating Elbow Making Machine With Strong Metal Frame Structure 1



3. Company Information:

  Guozhong is manufacturer of pipe fitting and pipe fitting machine such as hot forming elbow machine , cold forming elbow machine , cold forming tee machine ,shot blasting machine , beveling machine ,etc. All of product have good quality, and we have our own factory, so we can guarantee the source of supply and if the machine have any needs, we will repair and guide clients for production.
