Elbow Hot Forming Machine 168 Model With Commissioning And Training Service

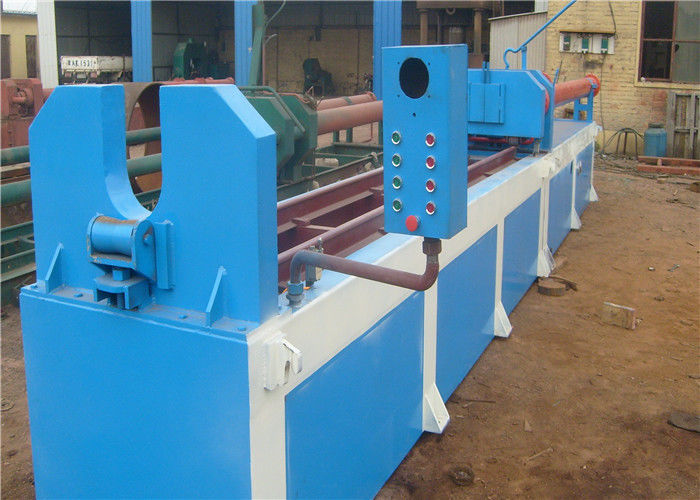

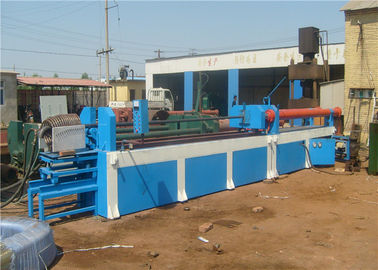

168 Model Hot Mandrel Elbow Hot Forming Machine

1. Product Description:

For the hot forming elbow machine production process, we use the small dimension and bigger thickness pipe to produce bigger dimension and less thickness elbow. The pipe will go through the mandrel of the hot forming elbow machine and the dimension will be expanded and the thickness of the elbow will be reduce then the elbow is coming. Form the pressure of hydraulic hot forming elbow machine and the inside radian will be gain thickness and the thickness will go to other parts of the carbon steel elbow then the whole elbow thickness will be almost same .

1.Mode NO: GIL168

Size range:OD60-168 Thickness:max10mm

2. Main Technical data of machine:

a. Main Ram Cylinder:ID 140mm,OD 168mm,effective distance:3.5meters

b. hydraulic pump:oil pump 40Lm/r axial plunger pump

32Lm/r gear pump

c. maximum elbow OD:6inch

e. minimum elbow OD: 1/2inch t

2. Packing& Shipping

3. Company Information:

  Guozhong is manufacturer of pipe fitting and pipe fitting machine such as hot forming elbow machine , cold forming elbow machine , cold forming tee machine ,shot blasting machine , beveling machine ,etc. All of product have good quality, and we have our own factory, so we can guarantee the source of supply and if the machine have any needs, we will repair and guide clients for production.
