Induction Heating Tube Expander Machine Easy To Operate High Efficiency

China Cangzhou Junxi International Trade Co., Ltd. certification
China Cangzhou Junxi International Trade Co., Ltd. certification
I'm Online Chat Now

Induction Heating Tube Expander Machine Easy To Operate High Efficiency

Induction Heating Tube Expander Machine Easy To Operate High Efficiency
Induction Heating Tube Expander Machine Easy To Operate High Efficiency Induction Heating Tube Expander Machine Easy To Operate High Efficiency

Large Image :  Induction Heating Tube Expander Machine Easy To Operate High Efficiency

Product Details:
Place of Origin: China
Brand Name: guozhong
Model Number: Pipe Expander Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Can discuss
Packaging Details: Plastic Film
Delivery Time: 30day
Payment Terms: T/T, L/C,
Supply Ability: 10set
Detailed Product Description
Heating Function: Medium Frequency Name: Pipe Expander Machine
Piston: Φ200mm Ram: Φ160mm
Color: Green Valid Travel: 4000mm
High Light:

pipe expanding machine

,

pipe expander equipment



Induction Heating Tube Expander Machine Easy To Operate High Efficiency



Technical Details:





Piston Ram Cylinder Valid Travel Max Thrust Qty
Φ200mm Φ160mm Φ273 4000mm 131T 2



1.60SCY—14-1B 1set brand-jiangsu qidong

CB—50 1set brand-shanxi yuci

CB—25 1set brand-shanxi yuci

VALVE BRAND: Beijing Huade

2.Motors: brand-shenyang hoaxing

Y—15kw 1set

Y—7.5kw 1set

Y—5.5kw 1set

3.Operation Platform 1set Electrical components brand:DELI XI

Main Fram :1. channel steel 220mmX8mm (Q235)

Push support plate:14mm-25mm plate steel(Q235)





1.

The company mainly produces expanding machine, three - way machine, elbow machine, press.Beveling machine, mold, etc.The company's production of the above pipe fitting equipment exported to many countries, by the customer's consistent praise.









2.

Intermediate frequency tube expanding machine expanding equipment

Main oil cylinder of medium frequency tube expanding machine: it is the original of the action of the equipment, all of its internal sealing rings have good wear resistance, long service life and other characteristics.

The spacing device of intermediate frequency interchanged power station: mainly consists of oil tank, oil pump, motor and valve integrated hydraulic expanding machine mainly consists of frame, motor cone-shaped punch, clamp and hydraulic system etc, oil cylinder in turn down touch six stroke switch action is: fast, work into, fast forward, advance and retreat and retreat quickly, six action as a work cycle.

Intermediate frequency tube expanding machine including main machine body: by the upper beam, movable beam and table column composition.The moving beam slides on the column driven by the oil cylinder through the eight guide sleeve on it to realize various actions

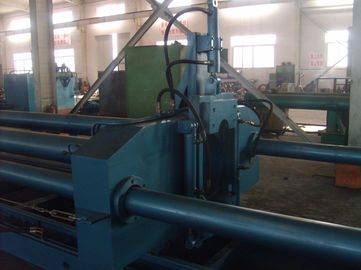

Induction Heating Tube Expander Machine Easy To Operate High Efficiency 0





3.

Intermediate frequency tube expanding machine mainly includes: frame, main oil cylinder, movable push plate, front support plate, automatic feeding mechanism, blanking roller table, mold support, if coil, if heating coil, if power supply, electrical control system.



Compared with manual operation to heat the steel tube, energy saving and environmental protection, the operation procedure is simplified, and the work cost is reduced. It is possible for one operator to monitor the normal production of pipe expanding unit at most.



4. Contact Details:



Darcy Dong



Whatsapp/wechat:008615630731167

Email:guozhong_darcy@126.com
