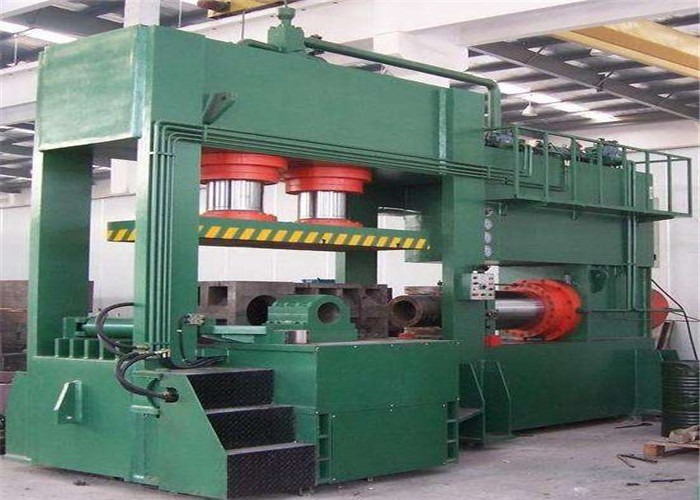

Hydraulic Press PLC Control 90 Degree 15Kw Elbow Making Machine

China Cangzhou Junxi International Trade Co., Ltd. certification
China Cangzhou Junxi International Trade Co., Ltd. certification
I'm Online Chat Now

Hydraulic Press PLC Control 90 Degree 15Kw Elbow Making Machine

Hydraulic Press PLC Control 90 Degree 15Kw Elbow Making Machine
Hydraulic Press PLC Control 90 Degree 15Kw Elbow Making Machine Hydraulic Press PLC Control 90 Degree 15Kw Elbow Making Machine Hydraulic Press PLC Control 90 Degree 15Kw Elbow Making Machine

Large Image :  Hydraulic Press PLC Control 90 Degree 15Kw Elbow Making Machine

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE
Model Number: GIL114
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box & Plastic wrapping
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10-15 sets/ month
Detailed Product Description
Product Name: Hydraulic Press PLC Control 90 Degree Elbow Making Machine Packing:: Wooden Box & Plastic Wrapping
Warranty:: 1 Year Size: Upto 114
Color: Green &Red Condition:: New
Name: Elbow Cold Forming Machine Total Power: 15Kw
Operate: Automatic Material: Carbon Steel
Voltage: 220V Tile Type: Steel Forming Machine
High Light:

PLC Control Elbow Making Machine

,

plc 90 degree elbow machine

,

15Kw Elbow Making Machine

Seamless And Erw Stainless Steel Hydraulic Mandrel Bending Cold Forming Machine

1. Product Description:

Cold Forming Elbow Machine is one type of Mandrel Elbow Making Machine which is big different from the Hot Forming Mandrel Elbow Machine . Comparing the Hot Pushing Elbow Machine , Cold Bending Elbow Machine need less land for landing the machine and for the power cost ,the Cold Pushing Elbow Machine need less power than the Hot Forming Elbow Machine for producing the same size Seamless Elbow .

seamless stainless steel elbow machine process is very convenient . First step ,we need cut the pipe into piece and it should do angle cutting. Second step , we put the raw material pipe into the cold forming elbow machine and do forming . after after forming do heat treatment , then pickling / shot blasting , beveling ,making, package. In all process ,Cold Bending Elbow Machine is the most important role . If the machine after forming the size is not standard . It must do the sizing for the elbows. After sizing , the elbow will become more standard and more beautiful .



2. Machine technical detail:

Hydraulic Press PLC Control 90 Degree 15Kw Elbow Making Machine 0



TYPE

PARAMETER

ZTW-114
PRODUCTION CAPACITY(mm) Ø 27-Ø114
LIQUID WOEKING PRESSURE(MPa) 25
LOCKING NOMINAL PRESSURE(KN) 2000
LOCKING MAX TRAVELLING DISTANCE (mm) 650
PUSHING NOMINAL PRESSURE(KN) 1500
PUSHING MAX TRAVELLING DISTANCE(mm) 600
DEMOULD NOMINAL PRESSURE(KN) 200
DEMOULD MAX TRAVELLING DISTANCE (mm) 500
POWER(KW) 15



3.  Company information

Our company is manufacturer of pipe fitting machines.We have focused on fitting machine 10years.Hot forming elbow machine, cold forming elbow machine, long bend machine,cold forming tee machine, pipe expanding machine,marking machine,median frequency heating machine,reducer machine, cap machine, shot blasting machine, cutting machine, bevelling machine,hydraulic press, CNC lathe machine, drill machine, ring rolling machine.

Our machines had been sold to many countries,such as Russia,Egypt,Malaysia,India,Turkey,Indonesia and Jordan.etc.We have office overseas office in Mumbai, India. Our marketing person and technician stay in abroad for 7-8 months each year for after sale service. Machine guarantee is one year . If our clients machine has problem, our after sale service person will come and help you solve the problem as quickly as possible.

Hydraulic Press PLC Control 90 Degree 15Kw Elbow Making Machine 1Hydraulic Press PLC Control 90 Degree 15Kw Elbow Making Machine 2



4. Our services:

  Prepare-sale service:1). Provide professional technical advisory services. 2). Provide inspection and reception at any time.

  In-sale service:1). Provide technical information and technical parameters of the machine. 2). Responsible for machine installation and commissioning. 3). Answer customer questions and give customers effective advices.

  After-sale service:1). Machine spares within one year free replacement and provide free technical services.

Hydraulic Press PLC Control 90 Degree 15Kw Elbow Making Machine 3
