90 Degree Hot Process Elbow Forming Machine Sch 80

China Cangzhou Junxi International Trade Co., Ltd. certification
China Cangzhou Junxi International Trade Co., Ltd. certification
I'm Online Chat Now

90 Degree Hot Process Elbow Forming Machine Sch 80

90 Degree Hot Process Elbow Forming Machine Sch 80
90 Degree Hot Process Elbow Forming Machine Sch 80

Large Image :  90 Degree Hot Process Elbow Forming Machine Sch 80

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE
Model Number: GIL168
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Stretch film or wooden box for Induction Heating Hot forming elbow machine
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7-15 set per month
Detailed Product Description
Product Name:: 90 Degree Hot Process Elbow Pushing Hot Forming Machine Thickness: Sch 40 Sch 80
Bend Radius: 1D-1.5D Size: 168mm
Material:: Alloy Steel Carbon Steel Application:: Carbon Steel Elbow,alloy Steel Elbow,
Keyword:: Hot Forming Elbow Machine Place Of Origin:: Hebei, China (Mainland)
High Light:

sch 80 elbow forming machine

,

hot process elbow forming machine

,

90 degree elbow hot forming machine

90 Degree Hot Process Elbow Pushing Hot Forming Machine



For the hot forming elbow machine , they make the elbow from smaller OD and higher thickness pipe so the if you want to make 3inch sch 40 elbow , you need smaller size pipe and higher thickness raw material pipe to produce . So i will save the raw material for the hot forming elbow machine production line.

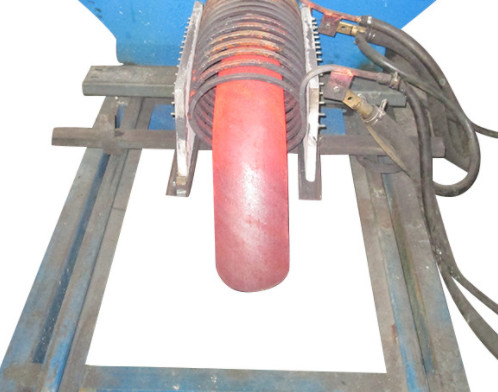

90 Degree Hot Process Elbow Forming Machine Sch 80 0





Major technology parameters



Paramete model HJ-II-219 HJ-II-325 HJ-II-426 HJ-II-530
Max diameter expanding to 219 325 426 530
Inner diameter of hydro-cylinde(mm) 160 200 220 250
Thrust force of hydro-cylinde(T) 84 130 160 206
Using thrust force(T) 67 104 128 165
Working adfvance speed(mm/min) 2500 1400 1600 1200
Return stroke(mm/min) 5000 3900 3400 3300



Remarks:

1,the thrust force of hydro-cylinder shall be calculated as two hydro-cylinder;design max pressure is 21Mpa;using pressure is 0-18Mpa.

2,the data is for reference only.

3.products can be customized according to requirement







Our Company

  • Our company is the professional manufacturer of pipe fitting machines and pipe fittings such as hydraulic hot forming elbow machine,elbow , etc.

  • Our company has overseas in Mumbai ,India and one after sale service team will supply service for the client.

  • Cangzhou Junxi International trade co.ltd. has found in 2011 . In 2018,we set up our India warehouse for after sale service.

  • Our company has a clear division of labor, business department, purchasing department, document department, and etc.
