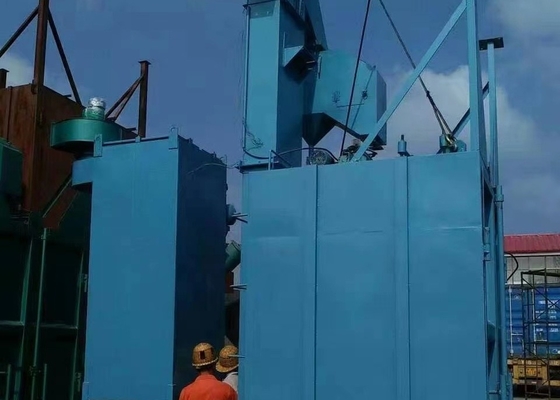

Crawler Type Shot Blasting Equipment Shot Blasting Machine
I. the composition of the equipment and each component description
This machine is a crawler type shot blasting equipment, consisting of rubber crawler, shot blasting machine assembly, shot circulating purification system, maintenance platform, shot blasting room, dust removal system and electric control system and other parts.
Shot blasting cleaning room
The chamber of the blast cleaning room is a steel section, plate welding structure. The arrangement of the shot blasting machine through the computer three-dimensional dynamic simulation, all the angles and positions of the arrangement are designed by the computer to determine. The blast machine is at a certain angle with the workpiece to ensure a comprehensive blast cleaning of the workpiece to be cleaned at one time, and on the basis of cleaning the workpiece, to minimize the empty throw of the projectile, thus maximizing the utilization rate of the projectile and reducing the wear and tear on the guard plate inside the cleaning chamber. The cleaning chamber is protected by chrome shield plates and special wear-resistant nuts, which reduce the wear of projectiles on the chamber body and improve the service life of the equipment.
II. Technical specifications
| No. | Item | Quantity | Indicators |
| 1 | cleaning workpiece | 1 | single piece of the heaviest ≤ 15kg |
| 2 | cleaning requirements | with GB8923-88 A-B Sa2 1/2 standard | |
| 3 | Shot blasting machine |
Model: Q034 Shot blasting volume: 260kg/min Blasting speed: ≥7.5m/s Power: 15kw |
|
| 4 | The use of projectile | Ф0.15~2.5 | |
| 5 | The first time to join the volume of projectiles | 0.2 t | |
| 6 | Bucket elevator |
Lifting capacity: 5t/h Power:1.5kw |
|
| 7 | Screw conveyor | 1 |
conveying capacity: 6t/h Power: 1.5kw |
| 8 | Separator | 1 |
Separation capacity: 56.5t Separation area wind speed: 4~5m/s Qualified projectile content in waste material: ≤1% |
| 9 | Dust removal system | 1 |
Model: pulse dust collector Main fan air volume: about 340m³/h Power: 3kw |
| 10 | Total power | about 21.5kw |
