Schedule 40 Equal 24inch Tee Carbon Steel Ansi B16.9 A234 Wpb

China Cangzhou Junxi International Trade Co., Ltd. certification
China Cangzhou Junxi International Trade Co., Ltd. certification
I'm Online Chat Now

Schedule 40 Equal 24inch Tee Carbon Steel Ansi B16.9 A234 Wpb

Schedule 40 Equal 24inch Tee Carbon Steel Ansi B16.9 A234 Wpb
Schedule 40 Equal 24inch Tee Carbon Steel Ansi B16.9 A234 Wpb

Large Image :  Schedule 40 Equal 24inch Tee Carbon Steel Ansi B16.9 A234 Wpb

Product Details:
Place of Origin: CHINA
Brand Name: HUAWEI
Certification: CE
Model Number: 1/2-120 INCH
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: negotiable
Packaging Details: WOODEN BOX
Delivery Time: 20 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 PCS/MONTH
Detailed Product Description
Material: A234 Connection: Butt Weld
Size: 1/2-24 INCH Application: Connect Pipes
Packaging: Pallet/ Wooden Box Standard Of Carbon Steel Pipe Fittings:: ASME
Head Code: Round Style: Equal Tee
Name: ANSI B16.9 A234 Wpb Sch40 Carbon Steel Equal Pipe Fitting Tee
High Light:

24inch carbon steel equal tee

,

ansi b16.9 standard tee carbon steel

,

schedule 40 tee carbon steel

ANSI B16.9 A234 Wpb Sch40 Carbon Steel Equal Pipe Fitting Tee

Product Description:

Type seamless/erw/semi-seamless 1D-D
Thickness sch10,sch20,sch30,std,sch40,sch60,xs,sch80, sch100,sch120,sch140,sch160,xxs
Standard ASME B16.9 ASTM JIS DIN
Size 1/2”-24”
Surface treatment bevelling,shot blasting,marking,painting according to customer requirement
Packaging fabric bag & wooden box & pallet
Delivery 10-15days





1. Hydraulic bulging

The hydraulic bulging of the tee is a forming process of compensating the bulging of branch pipe by the axial direction of metal material.The process is to use special hydraulic press, with three links within the tube billet diameter equal injection liquid, through the two horizontal side of the hydraulic cylinder synchronization of the motion of tube billet, billet after squeezed smaller volume, smaller volume of liquid with the tube billet inside the tube billet and pressure, when pressure tee branch pipe bulge out to the metal material in the liquid in the cylinder and the pipe pressure under the dual role of flow along the mold cavity and the branch pipe.

The hydraulic bulging process of the tee can be formed in one time with high production efficiency.The head and shoulder wall thickness of the tee are increased.





2. Forging forming

Because of the limitation of equipment and processing conditions, forging tee is generally of small caliber.Processing costs are relatively high.

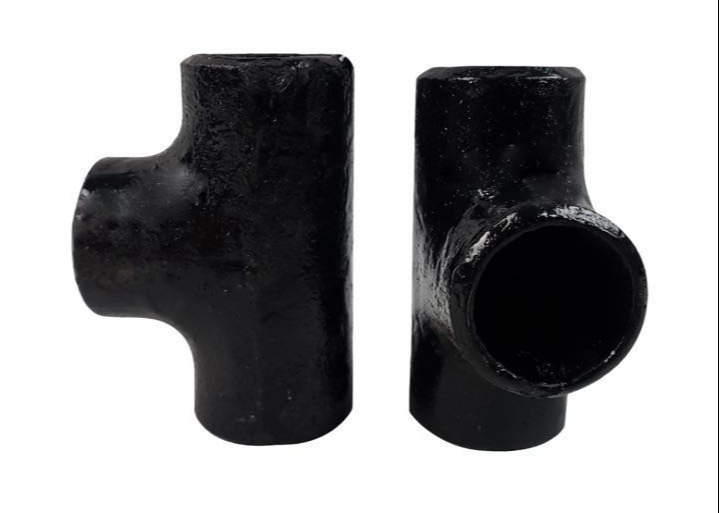

Product Show Pipe Fitting Tee

Schedule 40 Equal 24inch Tee Carbon Steel Ansi B16.9 A234 Wpb 0
