Ansi B 16.9 A234 Wpb Sch40 Seamless Pipe Fittings Carbon Steel Equal Tee

China Cangzhou Junxi International Trade Co., Ltd. certification
China Cangzhou Junxi International Trade Co., Ltd. certification
I'm Online Chat Now

Ansi B 16.9 A234 Wpb Sch40 Seamless Pipe Fittings Carbon Steel Equal Tee

Ansi B 16.9 A234 Wpb Sch40 Seamless Pipe Fittings Carbon Steel Equal Tee
Ansi B 16.9 A234 Wpb Sch40 Seamless Pipe Fittings Carbon Steel Equal Tee

Large Image :  Ansi B 16.9 A234 Wpb Sch40 Seamless Pipe Fittings Carbon Steel Equal Tee

Product Details:
Place of Origin: CHINA
Certification: CE
Model Number: 1/2-24 INCH
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: negotiable
Packaging Details: WOODEN BOX
Delivery Time: 20 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 PCS/MONTH
Detailed Product Description
Material: Carbon Steel A234 Connection: Buttweld
Size: 1/2-24 INCH Application: Connect Pipes
Packaging: Pallet/ Wooden Box Standard Of Carbon Steel Pipe Fittings:: ASME
Head Code: Round Style: Equal Tee
Raw Material Pipe: Seamless Steel Pipe Name: ANSI B16.9 A234 Wpb Sch40 Carbon Steel Equal Pipe Fitting Tee Seamless Pipe Fittings
High Light:

ansi b16.9 seamless pipe fittings

,

a234 wpb seamless pipe fittings

,

sch 40 carbon steel equal tee

ANSI B16.9 A234 Wpb Sch40 Carbon Steel Equal Pipe Fitting Tee Seamless Pipe Fittings

Product Description:

Type Tee Seamless Pipe Fittings /erw/semi-seamless 1D-15D
Thickness sch10,sch20,sch30,std,sch40,sch60,xs,sch80, sch100,sch120,sch140,sch160,xxs
Standard ASME B16.9 ASTM JIS DIN
Size 1/2”-24”
Surface treatment bevelling,shot blasting,marking,painting according to customer requirement
Packaging fabric bag & wooden box & pallet
Delivery 10-15days

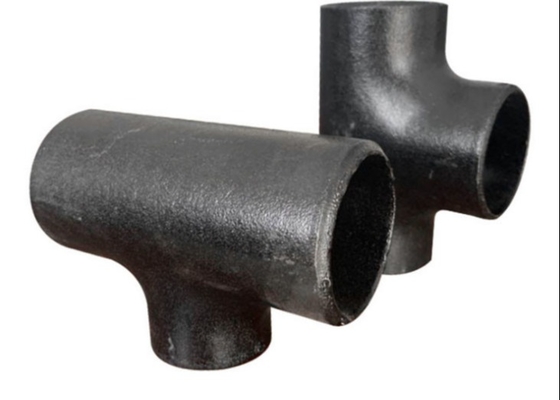

Product Show  Tee Seamless Pipe Fittings



Ansi B 16.9 A234 Wpb Sch40 Seamless Pipe Fittings Carbon Steel Equal Tee 0





1. Hydraulic bulging

The hydraulic bulging of the tee is a forming process of compensating the bulging of branch pipe by the axial direction of metal material.The process is to use special hydraulic press, with three links within the tube billet diameter equal injection liquid, through the two horizontal side of the hydraulic cylinder synchronization of the motion of tube billet, billet after squeezed smaller volume, smaller volume of liquid with the tube billet inside the tube billet and pressure, when pressure tee branch pipe bulge out to the metal material in the liquid in the cylinder and the pipe pressure under the dual role of flow along the mold cavity and the branch pipe.

The hydraulic bulging process of the tee can be formed in one time with high production efficiency.The head and shoulder wall thickness of the tee are increased.



2. Hot pressing

Hot pressing is to flatten the pipe billet larger than the diameter of the tee to the diameter of the tee. Cold drawing tee opens a hole in the part of the stretch branch pipe.The tube billet is heated, put into the forming die, and the punching die of the stretch branch pipe is loaded into the tube billet;Under the action of pressure, the tube billet is compressed radially. In the process of radial compression, the metal flows towards the branch tube and forms the branch tube under the stretching of the die.The whole process is formed by the radial compression of the tube billet and the stretching of the branch tube.Different from the hydraulic bulging tee, the metal of the hot pressing tee is compensated by the radial movement of the tube billet, so it is also called radial compensation process.
