Home ProductsSeamless Pipe Fittings

Fittings Ansi B16.9 304 Stainless Steel Pipe Tee Sch30

China Cangzhou Junxi International Trade Co., Ltd. certification
China Cangzhou Junxi International Trade Co., Ltd. certification
I'm Online Chat Now

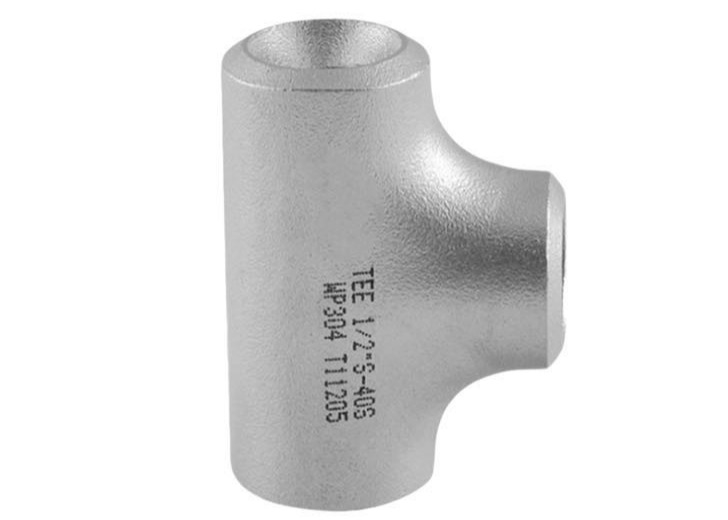

Fittings Ansi B16.9 304 Stainless Steel Pipe Tee Sch30

Fittings Ansi B16.9 304 Stainless Steel Pipe Tee Sch30
Fittings Ansi B16.9 304 Stainless Steel Pipe Tee Sch30

Large Image :  Fittings Ansi B16.9 304 Stainless Steel Pipe Tee Sch30

Product Details:
Place of Origin: CHINA
Certification: CE
Model Number: 1/2"-48"
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: negotiable
Packaging Details: WOODEN BOX
Delivery Time: 20 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 PCS/MONTH
Detailed Product Description
Connection: Butt Weld Pipe Size: 1/2"~ 48''
Application: Connect Pipes Packaging: Pallet/ Wooden Box
Standard Of Carbon Steel Pipe Fittings:: ASME/JIS/DIN/ ANSI Head Code: Round
Name: Superior Quality ANSI B16.9 Pipe Tee 304 Stainless Steel Seamless Pipe Fitting Tee Shipping: Support Express · Sea Freight · Land Freight · Air Freight
Material: Stainless Steel/Carbon Steel/Alloy Steel Color: Silver
High Light:

ansi b16.9 stainless steel pipe tee

,

304 grade stainless steel pipe tee

,

sch30 stainless steel tee

Superior Quality ANSI B16.9 Pipe Tee 304 Stainless Steel Seamless Pipe Fitting Tee



Company information:

Our company is producer and exporter of all kinds of Seamless Pipe Fittings.Our city is the hometown of carbon steel pipe fittings.everyday lots of containers of fittings are dispached all over the world,such as Russia,Egypt,Malaysia,India,Turkey,Indonesia,Jordon and some other overseas markets.Our company monthly dispach around 50containers fittings.We provide our customers with one-stop service from order to delivery.









Seamless Pipe Fittings Hydraulic bulging

The hydraulic bulging of the tee is a forming process of compensating the bulging of branch pipe by the axial direction of metal material.The process is to use special hydraulic press, with three links within the tube billet diameter equal injection liquid, through the two horizontal side of the hydraulic cylinder synchronization of the motion of tube billet, billet after squeezed smaller volume, smaller volume of liquid with the tube billet inside the tube billet and pressure, when pressure tee branch pipe bulge out to the metal material in the liquid in the cylinder and the pipe pressure under the dual role of flow along the mold cavity and the branch pipe.



I plant production of various carbon steel stainless steel quick joints Seamless Pipe Fittings, machinery, and so on, quality and cheap.Welcome to our shop.



Seamless Pipe Fittings Product Description:

Product Name
Superior Quality ANSI B16.9 Pipe Tee 304 Stainless Steel Pipe Fitting Tee
Size
1/2"-48"
Material
SS304
Packaging
Wooden case/Wooden Pallets
Standard
ANSI ,ASME, EN,DIN, JIS
Technology
Cold Extrusion
Thickness
Sch5S-Sch160, XS,XXS
Others
Special design available according to your request


Seamless Pipe Fittings Product Show



Fittings Ansi B16.9 304 Stainless Steel Pipe Tee Sch30 0

tee role:

Tee for pipe fitting, pipe connection.Also called pipe fitting tee or tee pipe fitting,

Stainless steel equal diameter tee

Stainless steel equal diameter tee

Tee joint, used at the main branch pipe.

Three - way is with three openings, namely an import, two exports;Or a chemical pipe fitting with two inlet and one outlet, having t-shaped and y-shaped, equal diameter pipe orifice, and reducing pipe orifice, for use at the junction of three identical or different pipelines.The main function of the tee is to change the direction of the fluid.
