Product Details:
Payment & Shipping Terms:
|
| Standard: | ASME B16.9 | Size: | 1-48 Inch |
|---|---|---|---|
| Type: | Seamless Or Weld | WT: | SCH40 |
| Shape: | Equal | Name: | Stainless Steel 304 316L Short Type Welded Tee |
| Material: | Stainless Steel 304 316L | ||
| High Light: | steel 304 seamless pipe fittings,short type welded seamless pipe fittings,steel 316l stainless pipe tee |
||

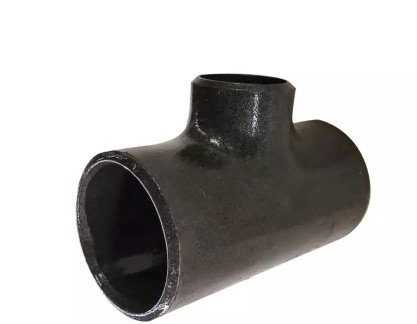

stainless steel 304 316L Short Type Welded TeeSeamless Pipe Fittings
Size detection
Measuring diameter: measure the outside diameter of main branch pipe of tee with calipers (outside diameter is measured by circumferential method) and inside diameter at least 3 points at each end to ensure that the main outside diameter, inside diameter, outside diameter of branch pipe and inside diameter meet the standard requirements.
(2) measuring the length of the main pipe: measure the length of the main pipe of the tee with square ruler and straight ruler, at least 2 places.
(3) measuring center height: measure the vertical distance between the branch pipe and the inner slope of the main pipe with a ruler and a square ruler, and make sure that the center height of the tee is half of the main pipe's outer diameter.
(4) measurement of bevel Angle: use universal Angle ruler and ruler to measure the bevel and blunt edge of the main branch pipe end of the tee, which should meet the design requirements of the drawing.
(5) measurement of skew: place the tee in the bending plate so that the main branch pipe rests on the bending plate respectively. Measure the clearance between the bending plate and the end face of the tee with a ruler or a plug, and the value shall meet the standard requirements
|
End Type
|
welding tee, clamp tee
|
|||
|
Inlet/outlet
|
equal tee, reducing tee
|
|||
|
Dimension
|
Long tee, short tee
|
|||
|
Standard
|
3A, DIN, SMS,ISO, VACUUM
|
|||
|
Shape
|
3-way tee, 4-way cross
|
|||
|
Material
|
304, 304l, 316,316l
|
|||
