Product Details:
Payment & Shipping Terms:
|
| Product Name: | Seamless Pipe Fittings Equal Tee Structural Metal Pipe Lines Connect Welding | Model: | Straight Tee |
|---|---|---|---|
| Surface: | Shot Blasting, Marking, Painting. Package | Application:: | Connect Pipe Line |
| Material: | Carbon Steel A234 | Connection:: | Butt Weld |
| Size:: | 1/2"-48" | Packaging:: | Wooden Pallet/ Wooden Box |
| High Light: | Customizable Stainless Steel Pipe Tee,DN250 Pipe Tee Fitting,DN250 Stainless Steel Pipe Tee |
||

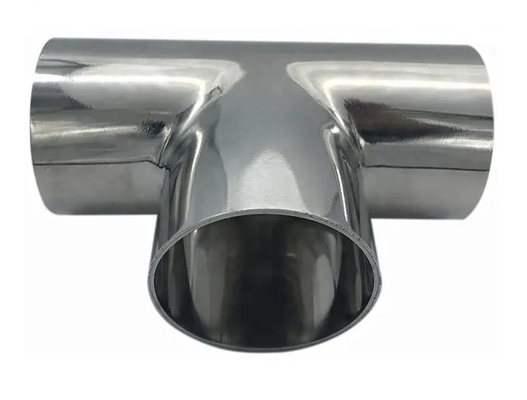

Stainless Steel High Quality T Type Pipe Branch Pipe Tee Fitting
| Size | DN8~DN250 , Customizable. |
| Material | Stainless steel SS304 ,SS304L ,SS316 , SS316L. |
| Technics | Forged |
| Flow Media | Water , Beberage , Pharmacy ,Milk ,Beer , Juice. |
| Fluid Temperature | Normal below 160 degrees. |
| Fluid pressure | 16MPa , Customizable. |
| Surface Treatment | Polish ,Pickling ,Electrochemical Polishing. |
| Connection Standard | Threaded Connection |
| Application |
Food and Beberage ,Pharmaceutical , General Industry ,etc. |
Stainless Steel steel tee producing process is very easy . Firstly ,we need cut the pipe into pieces and then put the pipe into the cold forming tee machine and after finishing the tee ,we will need to cut the cap , do heat treatment and beveling , shot blasting , and marking . For the Stainless Steel tee ,we can make the Stainless Steel steel tee according to client requirement . All pipe fittings which form cold process need to do heat treatment. After heat treatment , the quality of the Stainless Steel steel tee will be much better and the structure of the material will be much steady .
Seamless Pipe Fittings elbow technology:
seamless elbow forming technology is to choose the special elbow pipe parts of the push machine, core mold and heating equipment, so that the blank on the mold in the push machine to move forward, in the movement of heating, expanding and zigzag forming process.Hot pushing elbow pipes deformation characteristics is based on volume before and after plastic deformation rule of metal materials concluded that tube billet diameter, chooses the pipe diameter is less than the diameter of the elbow pipe fittings, through core model control billet deformation process, the arc is tight spot metal activity, counter to other parts of the thinned by expanding, then get the uniform wall thickness of elbow pipe fittings.Hot push pipe fitting forming technology has the characteristics of beautiful appearance, uniform wall thickness and continuous work, suitable for mass production, so it has become the primary forming method of Stainless Steel , alloy steel and Stainless Steel elbow, and also applied in the forming of some standard stainless steel elbow pipe fitting.The heating methods of the forming process include medium frequency or high frequency induction heating (heating ring can be multi-turn or single turn), flame heating and reflective furnace heating. The choice of heating methods depends on the demand of the forming commodity and the power status of the decision.
Seamless elbow manufacturers
