Product Details:
Payment & Shipping Terms:
|
Connection: | Butt Weld | Pipe Size: | 3" |
---|---|---|---|
Application: | Connect Pipes | Packaging: | Pallet/ Wooden Box |
Standard Of Carbon Steel Pipe Fittings:: | ASTM B16.9 | Head Code: | Round |
Name: | ASTM B16.9 WP316L 3" SCH40S Stainless Steel Pipe Fittings TEE | Color: | Silver |
High Light: | WP316L SCH40S Stainless Steel Pipe TEE,ASTM B16.9 3 Inch Pipe TEE,Stainless Steel Pipe TEE Sch160S |

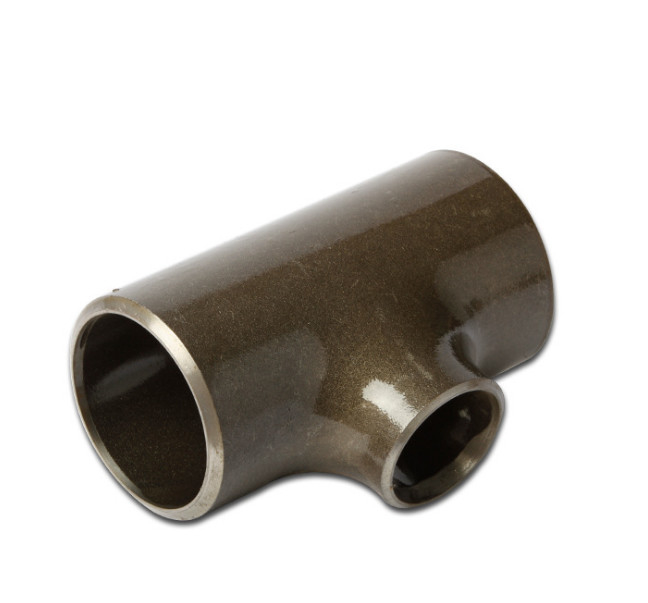

ASTM B16.9 WP316L 3" SCH40S Stainless Steel pipe fittings TEE
Seamless Pipe Fittings Hydraulic bulging
The hydraulic bulging of the tee is a forming process of compensating the bulging of branch pipe by the axial direction of metal material.The process is to use special hydraulic press, with three links within the tube billet diameter equal injection liquid, through the two horizontal side of the hydraulic cylinder synchronization of the motion of tube billet, billet after squeezed smaller volume, smaller volume of liquid with the tube billet inside the tube billet and pressure, when pressure tee branch pipe bulge out to the metal material in the liquid in the cylinder and the pipe pressure under the dual role of flow along the mold cavity and the branch pipe.
Seamless Pipe Fittings Product Description:
Product Name
|
Superior Quality ANSI B16.9 Pipe Tee 304 Stainless Steel Pipe Fitting Tee
|
Size
|
1/2"-48"
|
Material
|
SS304
|
Packaging
|
Wooden case/Wooden Pallets
|
Standard
|
ANSI ,ASME, EN,DIN, JIS
|
Technology
|
Cold Extrusion
|
Thickness
|
Sch5S-Sch160, XS,XXS
|
Others
|
Special design available according to your request
|
tee role:
Tee for pipe fitting, pipe connection.Also called pipe fitting tee or tee pipe fitting,
Stainless steel equal diameter tee
Stainless steel equal diameter tee
Tee joint, used at the main branch pipe.
Three - way is with three openings, namely an import, two exports;Or a chemical pipe fitting with two inlet and one outlet, having t-shaped and y-shaped, equal diameter pipe orifice, and reducing pipe orifice, for use at the junction of three identical or different pipelines.The main function of the tee is to change the direction of the fluid.
Seamless Pipe Fittings Product Show
