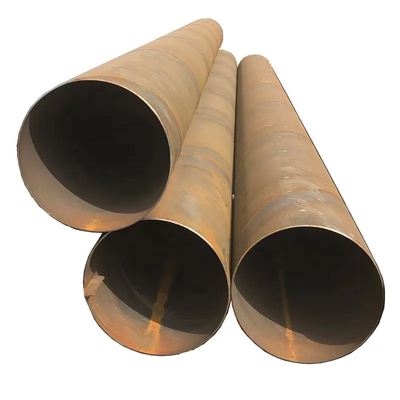

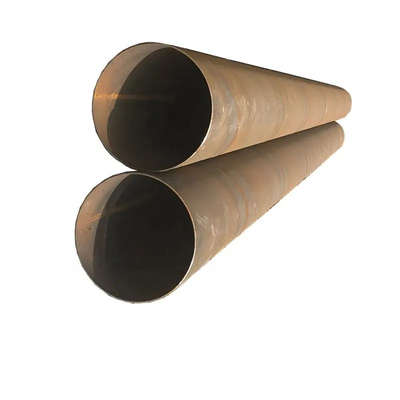

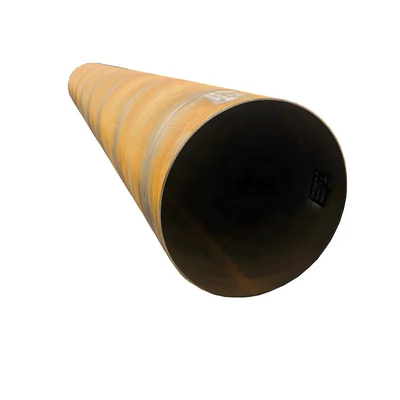

SSAW Steel Tube 609mm Carbon Steel Helical Seam Spiral Pipe For Oil Gas Pipeline

Large Image : SSAW Steel Tube 609mm Carbon Steel Helical Seam Spiral Pipe For Oil Gas Pipeline

Product Details:

Place of Origin:	hebei
Brand Name:	junxi

Payment & Shipping Terms:

Minimum Order Quantity:	discussible
Price:	discussible
Packaging Details:	Wooden case or pallet
Delivery Time:	15-25day
Payment Terms:	L/C, T/T
Supply Ability:	100000ton

Contact Now

Detailed Product Description

Product Name:	Spiral Welded Pipe	Place Of Origin:	Hebei，China
Materials:	Q235A,Q235b,Q345,L245,L290,40#,60#,X42,X46,X70,X80	Size:	Minimum:275X5mm;maximum:2420x22mm
Section Shape:	Round	Length:	12M, 6M, 6.4M Or Customer Requirements
Alloy Or Not:	Non-Alloy
Highlight:	SSAW Steel Tube 609mm , 609mm Seam Spiral Pipe , Gas Pipeline SSAW Steel Tube

Steel Tube SSAW 609 mm Carbon Steel Pipe Helical Seam Spiral Welded Steel Pipe Used For Oil And Gas Pipeline

Advantages of spiral welded pipe:

(1) Steel pipes of different diameters can be produced using strip steel of the same width, and
steel pipes of large diameter can be produced from narrow strip steel.

(2) Under the same pressure conditions, the stress of the
spiral welded seam is smaller than that of the straight seam, which is 75% to 90% of that of the straight seam welded pipe, so it can withstand greater pressure. Compared with the straight seam welded pipe of the same outer diameter, the wall thickness can be reduced by 10% to 25% under the same pressure.

(3) The size is accurate, the general diameter tolerance does not exceed 0.12%, the deflection is less than 1/2000, and the ovality is less than 1%. Generally, the sizing and straightening process can be omitted.
(4) Continuous production is possible. In theory, long steel pipes can be produced, with small head and tail loss, and can
increase the metal utilization rate by 6% to 8%.

(5) The equipment is light in weight and low initial investment. It can be made into a trailer-type mobile unit to directly produce welded pipes at the construction site where the pipeline is laid.

Specifications
Product Name	Spiral welded pipe
Place of Origin	hebei,China
Materials	Q235A,Q235b,Q345,L245,L290,40#,60#,X42,X46,X70,X80
Size	minimum:275X5mm;maximum:2420x22mm
Section Shape	Round
Length	12M, 6M, 6.4M or Customer requirements
MOQ	1 Ton
Delivery Time	15-25 days

SSAW Steel Tube 609mm Carbon Steel Helical Seam Spiral Pipe For Oil Gas Pipeline 0
