Product Details:
Payment & Shipping Terms:
|
| Length: | 3 – 70 M | Surface Treatment: | Hot Rolled |
|---|---|---|---|
| Processing Service: | Welding, Punching, Cutting | Surface: | Black Painted |
| Grade: | Q235, Q235B, S275, S275jr, A53, St37, Etc | OD: | 219.1 Mm – 3048mm |
| Wall Thickness: | 4mm - 30mm | ||
| High Light: | 70M Spiral Steel Pipe,70M Steel Pipe Hot Rolled,Construction Steel Pipe Arc Welded |
||
|
Process:
|

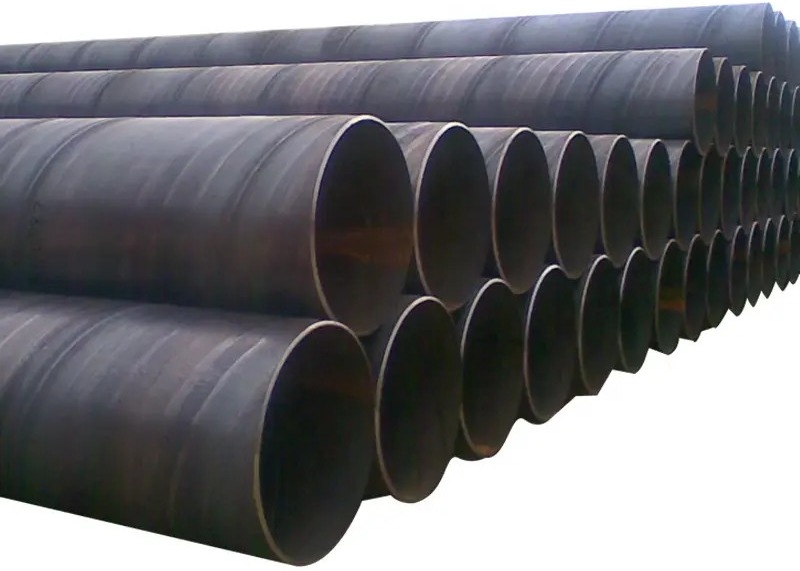

Spiral Submerged- Arc Welded Steel Pipe
|
|
Usage:
|
Used for low pressure liquid transportation, such as water, gas, and oil; construction and piping
|
|
Standard:
|
API 5L, ASTM A252, EN10217-1,2,5, EN10219-1, BS, JIS, IS
|
|
Certificate:
|
EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT
|
|
Out Diameter:
|
219.1 mm – 3048mm (8"-120")
|
|
Wall Thickness:
|
4mm - 30mm
|
|
Length:
|
3 – 70 M
|
|
Steel Grade:
|
API 5L: GR A, GR B, X42, X46, X56, X60, X65, X70 ASTM A252 GR 1, GR 2, GR 3
|
|
BS 4360:
|
Grade 43, Grade 50
|
|
EN:
|
S275JR, S275J0H, S275J2H, S355JRH, S355J0H, S355J2H
|
|
Surface:
|
Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
|
|
Test:
|
Chemical Component Analysis, Mechanical Properties (tensile strength, Yield strength, Elongation), Metallographic Test, Technical Properties (Bending Test, Charp-v Impact Test, Hydrostatic Test, X-ray Test, hydrostatic Test
|
