Home ProductsTee Forming Machine

Cold Forming Tee Making Machine , Automatic Hydraulic Forming Machine

China Cangzhou Junxi International Trade Co., Ltd. certification
China Cangzhou Junxi International Trade Co., Ltd. certification
I'm Online Chat Now

Cold Forming Tee Making Machine , Automatic Hydraulic Forming Machine

Cold Forming Tee Making Machine , Automatic Hydraulic Forming Machine
Cold Forming Tee Making Machine , Automatic Hydraulic Forming Machine Cold Forming Tee Making Machine , Automatic Hydraulic Forming Machine

Large Image :  Cold Forming Tee Making Machine , Automatic Hydraulic Forming Machine

Product Details:
Place of Origin: China
Brand Name: GUOZHONG
Certification: CE
Model Number: GIL219
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden box and the plastic film
Delivery Time: 30-45 days
Supply Ability: 30 set/year
Detailed Product Description
Name: Hydraulic Seamless And Erw Equal Tee And Unequal Tee Forming Machine Material: Stainless Steel, Alloy Steel , Carbon Steel
Color: Blue Function: Making Carbon Steel, Alloy Steel Tee
Voltage: 380V 50Hz 3Phases Or As Your Requirment Condition: New
Warranty: 1 Year Control System: PLC
Power(w): 30 Kw Thickness: Sch 40
After-sales Service Provided: Engineers Available To Service Machinery Overseas Operation: Automatic
High Light:

tee making machine

,

pipe fitting machine

Hydraulic Seamless and Erw Equal Tee And Unequal tee forming machine



For the raw material carbon steel and stainless steel we need different tee machine and for production the stainless steel tee, we need stainless steel tee making machine which need more setting on the cold forming tee machine. Because for the stainless steel , the cold forming tee machine need more pressure for forming the stainless steel tee.

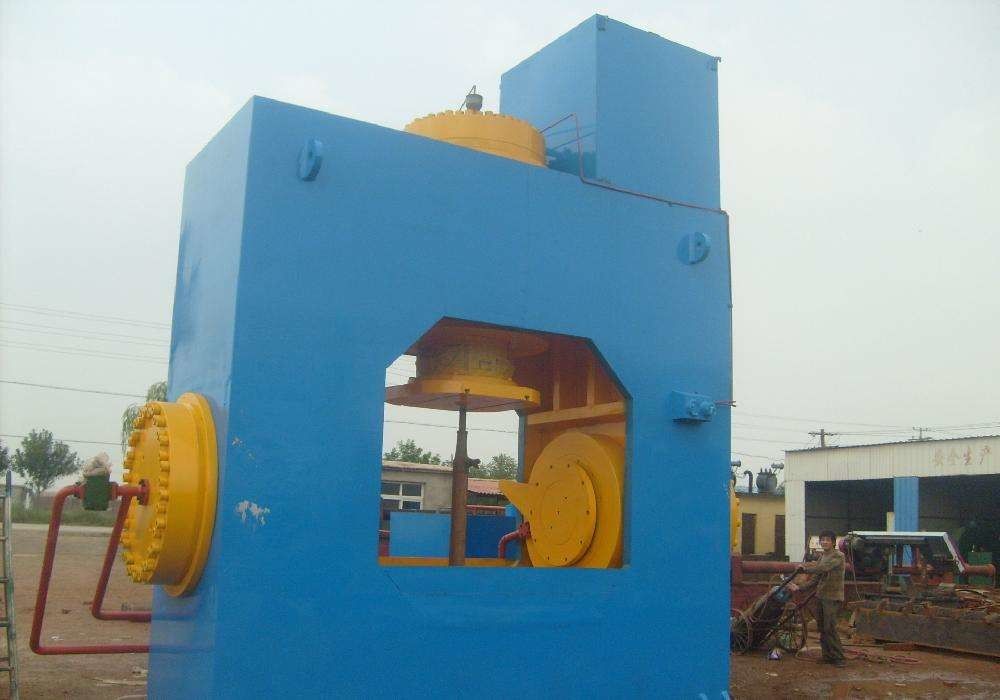

machine photo:

Cold Forming Tee Making Machine , Automatic Hydraulic Forming Machine 0



63SCY-14 QTY 2pc
CB-50 QTY 2pc



  • Main Cylinder:ID:650mm,OD:800mm, Piston:400mm,:effective distance:500mm,Press:31.5Mpa=1044.7tons one set
  • Side cylinder:ID:600,OD:700mm, Piston:750mm,:effective distance 300mm,pressing:31.5Pa=890.19tons two sets
  • hydraulic pump:oil pump 63SCY-14-1B 2 sets

CB-50 2sets



4..Assistant oil pump: Y-30 Two set

Y-2.2one set

5. Thinkness of the steel plate:60mm



6.Tee Max OD:Ф219mm*SCH40



contact function:

Darcy Dong

wahtsapp no/wechat:008615630731167

email id: guozhong_darcy@pipefittingsmachine.com
