15Kw Elbow Forming Machine , Cold Pushing Forming Machine Fully Automatic

China Cangzhou Junxi International Trade Co., Ltd. certification
China Cangzhou Junxi International Trade Co., Ltd. certification
I'm Online Chat Now

15Kw Elbow Forming Machine , Cold Pushing Forming Machine Fully Automatic

15Kw Elbow Forming Machine , Cold Pushing Forming Machine Fully Automatic
15Kw Elbow Forming Machine , Cold Pushing Forming Machine Fully Automatic 15Kw Elbow Forming Machine , Cold Pushing Forming Machine Fully Automatic

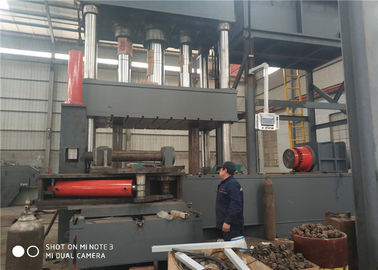

Large Image :  15Kw Elbow Forming Machine , Cold Pushing Forming Machine Fully Automatic

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE
Model Number: GIL114
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box & Plastic wrapping
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10-15 sets/ month
Detailed Product Description
PRODUCT: Auotomatic Stainless Steel And Alloy Steel Elbow Cold Forming Machine POWER: 15Kw
LOCKING MAX TRAVELLING DISTANCE (mm): 650 PRODUCTION CAPACITY(mm): Upto 114
BENDING RADIUS: 1.5D SIDE PUSHING (CYLINDER)SPEED: 550 M/S
CENTER HEIGHT OF THE MOULD: 155MM
High Light:

automatic elbow machine

,

elbow making machine

A234 WPB Automatic Seamless And Erw Steel Hydraulic Mandrel Bending Cold Forming Machine

1. Product Description:



Cold forming elbow machine save power comparing to the hot process type . We have exported the cold forming elbow machine more than 15 years and now we have exported the hydraulic cold elbow forming machine to many country such as India, Turkey , and etc.

2. Machine technical detail:



ITEM UNIT LZ114
PROCESSING SIZE RANGE inch 2-4
ELBOW MATERIAL   SS,CS
MAX PROCESSING THICKNESS sch 80
BENDING RADIUS D 1-1.5D
BENDING DEGREE Deg 45 °&90°
NOMINAL PRESSURE KN 2000
RETURN STOKE FORCE KN 250
MAX OPENING HEIGHT mm 880
MAX FLUID WORKING PRESSURE Mpa ~25

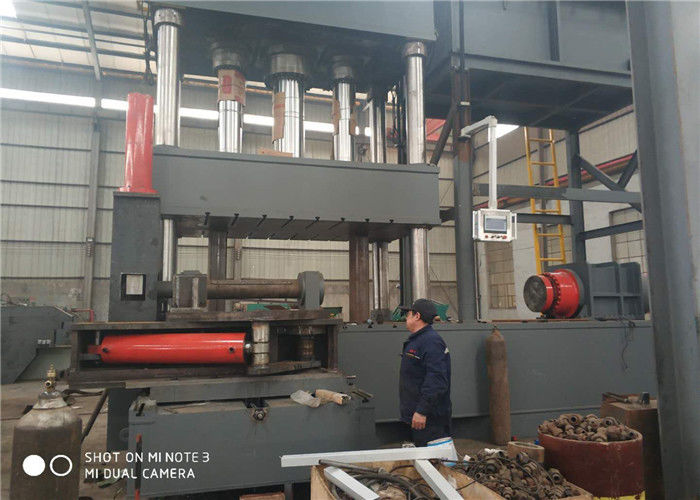

15Kw Elbow Forming Machine , Cold Pushing Forming Machine Fully Automatic 0

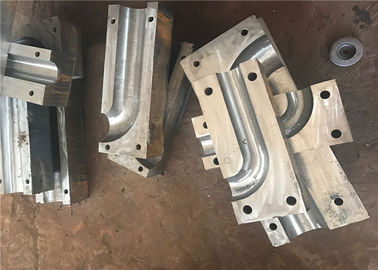

Cold Forming Elbow Machine is different from Hot Forming Mandrel Elbow Machine . For the Cold Pushing Elbow Machine, the machine molds have two parts one is outside die which contain upper die and down die . Another part of the mold is inside mandrel or inside ball .



Our Company

  • Our company is the professional manufacturer of pipe fitting machines and pipe fittings such as hydraulic hot forming elbow machine,elbow , etc.

  • Our company has overseas in Mumbai ,India and one after sale service team will supply service for the client.

  • Cangzhou Junxi International trade co.ltd. has found in 2011 . In 2018,we set up our India warehouse for after sale service.

  • Our company has a clear division of labor, business department, purchasing department, document department, and etc.



4. Our services:

  Prepare-sale service:1). Provide professional technical advisory services. 2). Provide inspection and reception at any time.

  In-sale service:1). Provide technical information and technical parameters of the machine. 2). Responsible for machine installation and commissioning. 3). Answer customer questions and give customers effective advices.

  After-sale service:1). Machine spares within one year free replacement and provide free technical services.

15Kw Elbow Forming Machine , Cold Pushing Forming Machine Fully Automatic 1
