Payment & Shipping Terms:
|Product Name:||Hydraulic Fixture Two Side Automatic New Model Elbow Double Pipe Fitting Beveling Machine||Screw Speed:||8M/MIN|
|Application::||Bevel Pipe And Pipe Fitting||Use::||Math Pipe And Pipe Fittings|
|Total Weight Of Machine Tool:||3.5T||Attachment Configuration:||Workpiece Cursor|
pipe beveling equipment,
automatic pipe beveling machine

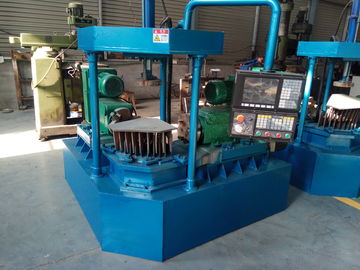

steel elbow beveling machine with two heads,high speed and quality
With 8 speed ratio reducer
|Total weight of machine tool||3.5T|
2. Company Information:
Guozhong is manufacturer of pipe fitting and pipe fitting machine such as Cold forming elbow machine, Hot forming elbow machine, Cold forming tee machine, Beveling machine, Shot blasting machine, Marking machine, Sizing machine, Ring rolling machine. All of product have good quality, and we have our own factory, so we can guarantee the source of supply and if the machine have any needs, we will repair and guide clients for production.
4.Safe operation of automatic double-head chamfering machine:
The daily operation schedule of automatic chamfering machine and double-end chamfering machine should be prepared and checked before daily work:
1. Check the environment around the automatic chamfering machine and double-head chamfering machine every day.
2. Check whether the tools in the tool box are complete.
3. Check whether the air source, power supply, button switch, indicator light and electric eye induction of the double-end chamfering machine are normal.The brakes are sensitive.
4. Check whether the oil pump and paraffin oil pump of automatic chamfering machine are working and whether the oil nozzle is injected to ensure normal operation of the equipment.
5. Check whether the reducing die and flanging die are loose. If so, make adjustments immediately.
5.Equipment principle of automatic double-head chamfering machine:
Double-head chamfering machine, with the help of the friction between the rubber wheel and the rotary press wheel to assist the positioning and adjust the friction torque of the workpiece using the grinding wheel chamfering is the main content of the design.
Main drive mechanism the main drive mechanism is composed of the driving wheel shaft and the inert wheel shaft. The driving wheel shaft and the inert wheel shaft are respectively inlaid with a set of styrene butadiene rubber wheels. The spacing is.
Hot rolled steel products will have different degrees of bend, in order to prevent stuck between wheel and workpiece by jumping out of iron and reduce friction torque phenomenon appears, when the design will take the initiative to the input end of the shaft is fixed, two axis by grinding the two rubber wheel is fixed, the other two shaft all the rubber wheel can float up and down, move around, to complete the whole process of double-headed chamfering machine work.
