| Product Name:: | Elbow Cold Forming Machine | Size: | 57mm- 114 Mm |
|---|---|---|---|
| Bend Radius: | 1D-1.5D | Material:: | Stainless Steel |
| Application:: | Stainless Steel Elbow | Usage: | Producing Stainless Steel Elbow |
| Painting: | Lucency | Motor Power: | 15kw |
| Pressure: | 25mpa | ||
| High Light: | 57mm elbow forming machine,15kw elbow forming machine,CE elbow forming machine |
||

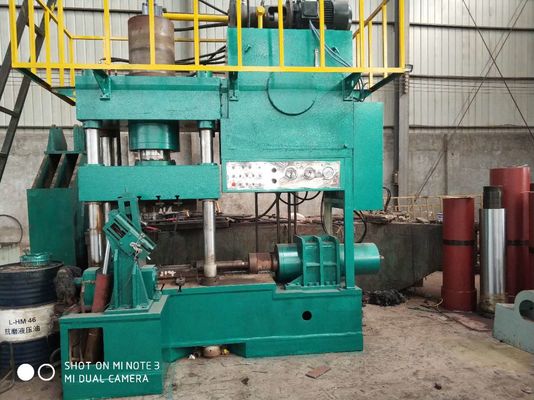

Used for cold push molding of stainless steel elbow GIL114 Cold Forming Machine
Product parameters:
Second, the performance
1, used for stainless steel elbow cold push molding.
2. Rated working pressure of oil: 25Mpa.The experimental pressure of oil cylinder is 31.5mpa
3. The main cylinder pressure is 150T and the effective stroke is 500mm (the inner diameter of the cylinder is 280mm).
4. The side cylinder pressure is 80T and the effective stroke is 600mm (the inner diameter of the cylinder is 160mm).
5. Elbow forming range is 57-114 diameter.
6. Motor power: 15KW.
7. 90° Reverse mandrel stripping
8. Environmental conditions of cold pusher: ambient temperature 5-38 degrees, relative humidity ≤82%, input voltage of three-phase four-wire 380V (-12%-- +15%), frequency of 50Hz±2%.The working time can work continuously 24 hours a day, the air is non-corrosive medium, the equipment must run in the workshop, there is enough space.
9. Yb-n46 anti-wear hydraulic oil is adopted.
Iii. Oil cylinder standard
1. The manufacture of oil cylinder conforms to JB/T10205-2000 and JB/T15622-2005 standards.
2. Oil cylinder is 45# steel, inner surface finish is Ra0.3, piston rod adopts 45# seamless tube, surface is chrome plated, polished after plating, no straight lines, spiral lines, finish is Ra0.4.
3. The rest parts of the oil cylinder are made of 45# forgings to ensure the mechanical properties.
4. The piston guide sleeve of the main oil cylinder adopts copper sleeve, all seals adopt standard priority series, and the main oil seal adopts imported AiKE from Austria.
5. Before the assembly of the oil cylinder, it is required to inspect the smoothness, hardness, fit size and other items of the cylinder and piston rod, inspect the quality of forgings and seals, the parts used in the assembly of the oil cylinder conform to the standard, and carry out pressure test after the assembly of the oil cylinder.
Four, host,
The main structure is three-beam and four-column structure. The equipment includes upper beam, lower beam, slider, link column, nut, oil cylinder and reverse device, etc.The three beams are welded with Q235-A high quali
