Bw Api 600 Heavy Duty Flex Wedge Gate Valve , Industrial Control Valves

Name: Bw Api 600 Heavy Duty Flex Wedge Gate Valve , Industrial Control Valves
Brand: junxi
SKU: junxi
Rating: 4.9 (158 reviews)

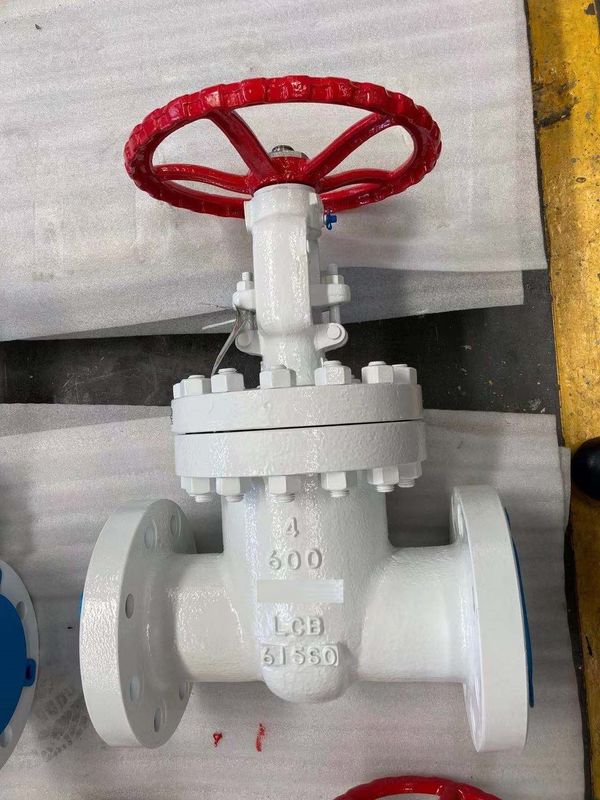

Large Image : Bw Api 600 Heavy Duty Flex Wedge Gate Valve , Industrial Control Valves

Product Details:

Place of Origin:	hebei
Brand Name:	junxi

Payment & Shipping Terms:

Minimum Order Quantity:	Can discuss
Price:	Can discuss
Delivery Time:	15~25
Payment Terms:	L/C, T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Highlight:

heavy duty flex wedge gate valve

bw flex wedge gate valve

api 600 flex wedge gate valve

Design Feature:

Bolt bonnet .
Casting or forged body.
Full port or reduced port design.
Back seal design.
Stem is one-piece wrought material.
Flexible wedge gate , Solid wedge gate.
Outside Screw and Yoke .
Rising stem
welding Seat.
Special request : Locking device ,Position indicator.Limit Switch.

Product Range :

Size: NPS 2”~ 48” , DN 50-1200
Pressure Rating: Class 150 -2500 LB , PN 10~400
Design standard:API 600 ,ASME B16.34,ISO 10432,EN1984.
Face To Face Dimension: ASME B16.10,EN 558-1,EN 12982
Connecting Dimensions : ASME B16.5 , ASME B16.47, ASM B 16.25 , EN 1092-1 , EN 12627.
End Connection : Flange, BW .
Body Materials : Carbon steel , Alloy Steel,Duplex/ Stainless Steel , Special Alloy .

Technical sepcification

Design reference	API		ASME
Design standard	API6D		ASME B16.34
Flanged ends	Thread ends		Socket welded ends
ASME B16.10	ASME B16.11		ASME 1.20.1
Flanged ends		ASME B16.5
Test & Inspection		API598

Tag:

Contact Person: Darcy Dong

Tel: 0086 18632745010
