304 316 Cf8 Cf3m Cf8m Gate Valve 12 Inch Stainless

China Cangzhou Junxi International Trade Co., Ltd. certification
China Cangzhou Junxi International Trade Co., Ltd. certification
I'm Online Chat Now

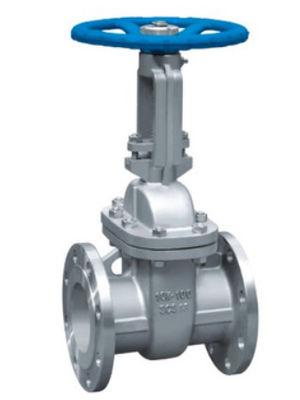

304 316 Cf8 Cf3m Cf8m Gate Valve 12 Inch Stainless

304 316 Cf8 Cf3m Cf8m Gate Valve 12 Inch Stainless
304 316 Cf8 Cf3m Cf8m Gate Valve 12 Inch Stainless 304 316 Cf8 Cf3m Cf8m Gate Valve 12 Inch Stainless 304 316 Cf8 Cf3m Cf8m Gate Valve 12 Inch Stainless 304 316 Cf8 Cf3m Cf8m Gate Valve 12 Inch Stainless

Large Image :  304 316 Cf8 Cf3m Cf8m Gate Valve 12 Inch Stainless

Product Details:
Place of Origin: Cangzhou
Brand Name: JUNXI
Certification: CE
Model Number: 304/316
Payment & Shipping Terms:
Minimum Order Quantity: 50000
Price: Negotiable
Packaging Details: Wooden pallet
Delivery Time: 3-5monthS
Payment Terms: L/C, T/T,
Supply Ability: 1000 Ton/Tons per Month
Detailed Product Description
Type: Gate Valves Place Of Origin: Cangzhou,China
Brand Name: JUNXI Model Number: Globe Valve
Application: General, Water, Oil Temperature Of Media: Medium Temperature
Media: Water Port Size: 2"-12"
Structure: Stop Standard Or Nonstandard: Standard
High Light:

stainless cf8m gate valve

,

12 inch cf8m gate valve

,

stainless cf8 gate valve

304/316 Stainless Steel CF8/CF8M/CF3M Gate Valve Metal Industrial Valve



Product Description



Size 2"-12"
Pressure 800LB
Medium Water, Air, Gas, etc
Temperature -29~+450 C
Material Cast iron, Carbon steel, Stainless steel
Design ASME B16.34;
Inspection&Testing API 598/API 6D;
Face to Face ASME B16.10;
Application of product Our goods are widely used on fire fighting, water, marine and oil&gas.



Company introduction



Cangzhou Junxi International Trade Co., Ltd.

Our company produce and export all kinds of carbon steel pipe fittings,Seamless Pipe Fittings, Our city Cang Zhou city is the hometown of carbon steel pipe fittings. We have exported to many countries, such as, Russia, Egypt Malaysia, India, Turkey, Indonesia, Jordan etc.
About the pipe fitting machine, we have different type for every machine.We have hot forming elbow machine, cold forming elbow machine, cold forming tee machine, beveling machine, shot blasting machine, etc.. Machine guarantee is one year. If our clients machine has problem, our after sale service person will come and help the clients solve the problem as quickly as possible.



About the pipe fitting machine, we have different type for every machine.We have hot forming elbow machine, cold forming elbow machine, cold forming tee machine, beveling machine, shot blasting machine, etc.. Machine guarantee is one year. If our clients machine has problem, our after sale service person will come and help the clients solve the problem as quickly as possible.



Use of valves



When gate valve is closed

The sealing surface can only rely on the medium pressure to seal, that is, rely on the medium pressure to press the sealing surface of the gate to the other side of the valve seat to ensure the sealing surface, this is self-sealing.Most gate valves are forced to seal, that is, when the valve is closed, it is necessary to rely on external force to force the gate to the valve seat to ensure the sealing surface of the sealing.



Open the door

When the gate height is equal to 1:1 of the valve diameter, the flow path is completely clear, but this position cannot be monitored during operation.In practice, the vertex of the valve stem is used as a sign, that is, the position of the open, as its full open position.In order to consider the temperature changes appear lock phenomenon, usually open to the apex position, and then back to the 12-1 turn, as the position of the full open valve.Therefore, the fully open position of the valve is determined by the position of the gate (i.e. the stroke)



304 316 Cf8 Cf3m Cf8m Gate Valve 12 Inch Stainless 0

picture of shipment



304 316 Cf8 Cf3m Cf8m Gate Valve 12 Inch Stainless 1
