Handwheel Operated 150lb Globe Valve Flange Type

China Cangzhou Junxi International Trade Co., Ltd. certification
China Cangzhou Junxi International Trade Co., Ltd. certification
I'm Online Chat Now

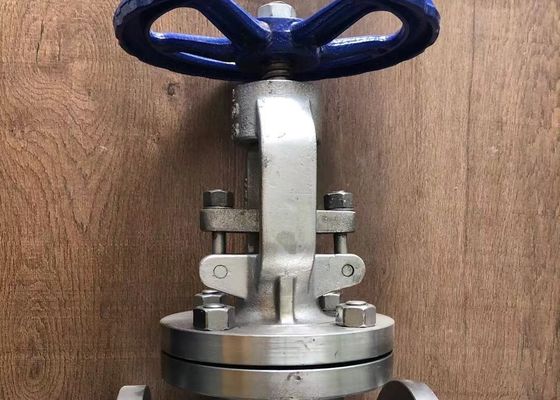

Handwheel Operated 150lb Globe Valve Flange Type

Handwheel Operated 150lb Globe Valve Flange Type
Handwheel Operated 150lb Globe Valve Flange Type Handwheel Operated 150lb Globe Valve Flange Type

Large Image :  Handwheel Operated 150lb Globe Valve Flange Type

Product Details:
Place of Origin: hebei
Brand Name: junxi
Payment & Shipping Terms:
Minimum Order Quantity: Can discuss
Price: Can discuss
Delivery Time: 15~25
Payment Terms: L/C, T/T
Supply Ability: 1000
Detailed Product Description
Material: Casting,Stainless Steel,Brass,Cast Iron,Ductile Iron Media: Water,Oil,Gas,Acid,Steam
Standard Or Nonstandard: Standard Product Name: Stop Valve
Standard: ASME Connection: Flange Ends,Flange Connection,Female Thread
Medium: Base Oil Water Gas,Water Oil Gas Air Etc.,gas,Water,oil
High Light:

handwheel operated globe valve flange type

,

150lb globe valve flange type

,

150lb flanged globe valve

Metal industrial valve Handwheel Operated Flanged Globe Stop Valve



Handwheel Operated Globe Valves



Size: 2"~ 48" DN 50-DN1200
Pressure 150LB -2500LB PN 10~PN400
Material Carbon steel,Duplex /Stainless Steel, Special Alloy





To make a suit solution for your enquiry , we need follow information.

  1. Design standard.
  2. Medium & Component.
  3. Connection standard .
  4. Body material .
  5. Trim (Material for inside parts).
  6. Size.
  7. Connection type.
  8. Operation type.
  9. Temperature.
  10. Ambient temperature range . Corrosion considerations.
  11. Application Descripetion.
  12. Test & Inspection requirement , Such as : Hydraulic test , Material Analysis , Chemical compoent analysis ,etc
  13. Document requirement , such as : Mill certificate , Material Certificate ,Test Report ,etc...



Design Feature:

  1. Bolt bonnet or Pressure seal bonnet design.
  2. Casting or forged body.
  3. Full port or reduced port design.
  4. Back seal design.
  5. Stem is one-piece wrought material.
  6. Tapered disc , Flat disc.,Regulating Disc, Parabolic disc.
  7. Outside Screw and Yoke .
  8. Rising stem and non-rising stem
  9. Renewable Seat or welding Seat.
  10. Special request : Locking device ,Position indicator. Limit Switch.
  11. Extend bonnet For underground Service.

Product Range :

  1. Size: NPS 2”~ 48” , DN 50-1200
  2. Pressure Rating: Class 150 -2500 LB , PN 10~400
  3. Design standard:API 600 ,ASME B16.34,ISO 10432,EN1984.
  4. Face To Face Dimension: ASME B16.10,EN 558-1,EN 12982
  5. Connecting Dimensions : ASME B16.5 , ASME B16.47, ASM B 16.25 , EN 1092-1 , EN 12627.
  6. End Connection : Flange, BW .
  7. Body Materials : Carbon steel , Stainless Steel , Alloy Steel,Duplex Stainless Steel , Special Alloy .
