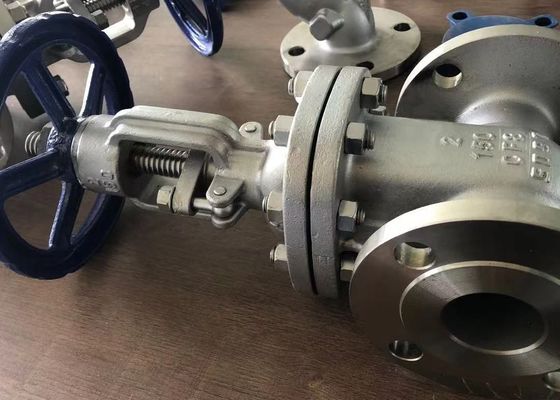

Heavy duty metal valve Control Flex Wedge Gate Valve

Applicable Standards

• Nominal Dimension: Casting Valve: 2”-48”
• Material:DI, CS, SS, DSS,LTCS, Inconel ,Monel, Bronze,Aluminum Bronze
• Design Standard: API 6D, API 600, DIN3352, ASME B16.34
• Operation type: Manual,Gear, Electric Actuator, Pneumatic Actuator, Hydraulic actuator
• Nominal Pressure: Class 150-2500
• Connection type: RF,RTJ,FF, SW, NPT, BW,ETC.
• Forged T-Head stem.
• Outside screw & yoke, Non-rising stem. Special design for Fugitive emission testing
• Structure: Flexible or parallel slide wedge, fully guide, Bolted Bonnet, Welded Bonnet, Pressure seal.

Detailed Product Description

Size: 2"~ 48" , DN 50-1200mm
Pressure :150 -2500LB, PN 10~400
Material :Carbon steel,AlloySteel, Duplex /Stainless Steel

24 inch 300lb Gate Valve

Design Feature:

1. Bolt bonnet .
2. Casting or forged body.
3. Full port or reduced port design.
4. Back seal design.
5. Stem is one-piece wrought material.
6. Flexible wedge gate , Solid wedge gate.
7. Outside Screw and Yoke .
8. Rising stem
9. welding Seat.
10. Special request : Locking device ,Position indicator.Limit Switch.

Product Range :

1. Size: NPS 2”~ 48” , DN 50-1200
2. Pressure Rating: Class 150 -2500 LB , PN 10~400
3. Design standard:API 600 ,ASME B16.34,ISO 10432,EN1984.
4. Face To Face Dimension: ASME B16.10,EN 558-1,EN 12982
5. Connecting Dimensions : ASME B16.5 , ASME B16.47, ASM B 16.25 , EN 1092-1 , EN 12627.
6. End Connection : Flange, BW .
7. Body Materials : Carbon steel , Alloy Steel,Duplex/ Stainless Steel , Special Alloy .

Technical sepcification
