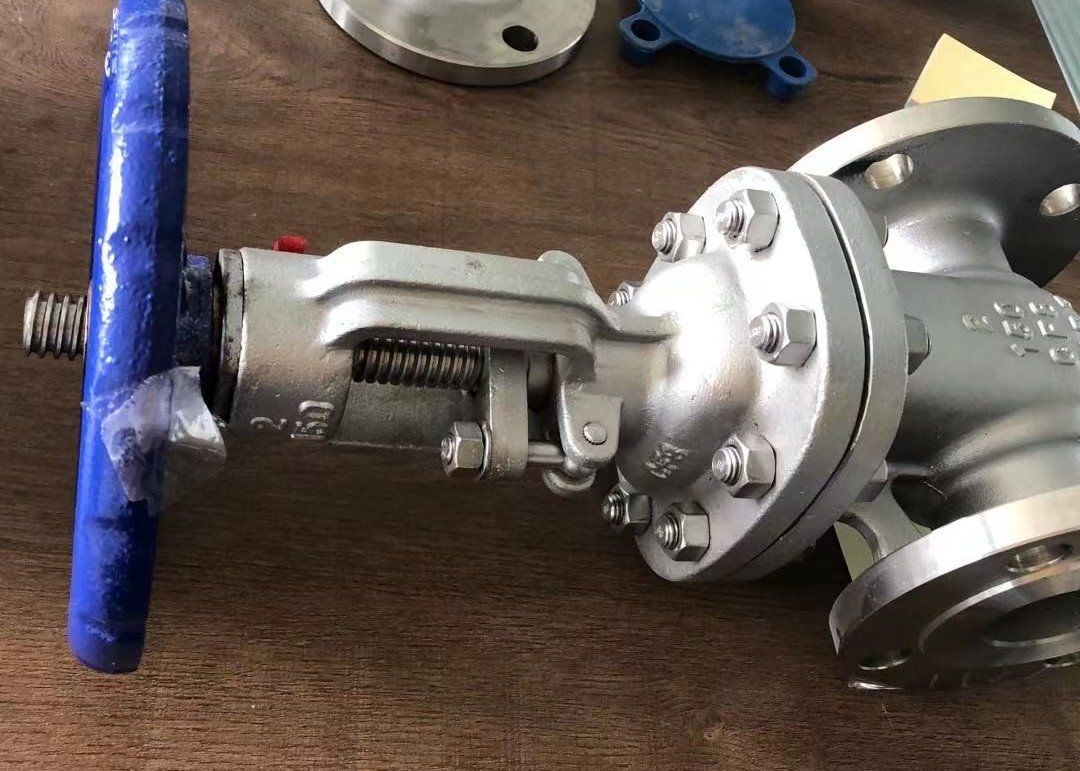

|Media:||Water,Oil,Gas,Acid||Power:||Manual,Handwheel Operated,electric,Gear Operated|
|Structure:||Metal Gate Valve||Port Size:||Standard, Full, Reduced|
|Material:||Stainless Steel||Pressure:||Medium Pressure,Low Pressure,High Pressure|
wcb forging ball valve,
blowout proof wcb ball valve,
anti static wcb ball valve
Design standard: API 6D,DIN3357-1 , EN12516-1
Face to Face standard: API6D, ASME B16.10, DIN3202
Connecting Standard: ASME B 16.5, ASME B16.47, DIN 2543/4,ASME B 16.25
Test & Inspect Standard: API 6D ,API 598
Working Temperature: -196℃~150℃
Connection type: RF,RTJ,FF,BW.BSPT,NPT
Sour environment:NACE MR0175
*The ball is seat supported for size 8” and smaller.
1: Full bore or reduced bore
2: Two-Piece downstream sealing
3: Fire safe design(API 607)
4: Blowout-proof system
5: Anti-static design
6: Fugitive emission testing(optional)
Fire safe design
With the valve heated in a fire application, the Non-metal material parts such as seat sealing ring of PTFE, stem back seat gasket, gland packing, and the sealing gasket between body and bonnet might disintegrate or be damaged due to high temperature. Coosai Valve's specially designed structure of auxiliary metal to metal seal is provided to effectively prevent both internal ball and external ball leakage of the valve. As per required by customers, Coosai Valve's floating ball valves with fire safe design can meet the requirement of API607, API6FA, BS6755.
Reliable Stem Seal
The Below-out proof design has been adopted for the stem to ensure that even if the pressure in the body cavity is risen accidently and design with a back seat, being assembled from underneath. The sealing force against the backseat gets higher as the medium pressure becomes higher. So the reliable seal of the stem can be assured under variable medium pressure.
V type packing structure has been employed to effectively transform the pushing force of gland flange and the medium pressure into the sealing force against the stem.
The traditional packing flange design has been improved to be two-piece structure, i.e., being as a gland flanged and gland, the latter contacts the gland flange with spherical surface. Thus, the gland remains vertical always, and is lined internally with a PTFE bush to prevent the galling against and friction between the stem, which can also reduce the operation torque of the valve.
Based on customers' requirement, a packing tightening design may be employed to obtain more reliable stem packing sealing, which is loaded by beveling spring.
Reliable seat seal
The structure design of elastic sealing ring has been adopted for floating ball valve. This seat design features a bigger sealing pressure ratio between the ring surface and the ball when medium pressure gets lower, where the contacting area is smaller. Thus, the reliable sealing is encusred. When the medium pressure gets higher, the contacting area between seat ring and ball becomes bigger as the ball sealing ring transforms elastically to undertake the bigger force pushed by the medium without any damage.
|Ball Valve Type||Design and Manufacture||Face to Face/End to End||Flange Dimensions||Pressure Temperature Rating||Inspection and Test|
|Split Flange ball valve||BS5351||ANSI B16.10||ANSI B16.5||ANSI B16.34||API6D|
|Fixed flange ball valve||API6D/API608||API6D||ANSI B16.47||ANSI B16.34||API598|
|Body material||Trim material||Seal material||Gasket/Packing|
|WCB/LCB/CF8/CF8M/CF3/CF3M,ETC.||SS410, SS420, SS304, SS316,ETC||PTFE, RPTFE, PEEK, PPL, ETC.||GRAPHITE. PTFE, PPL. ETC.|
