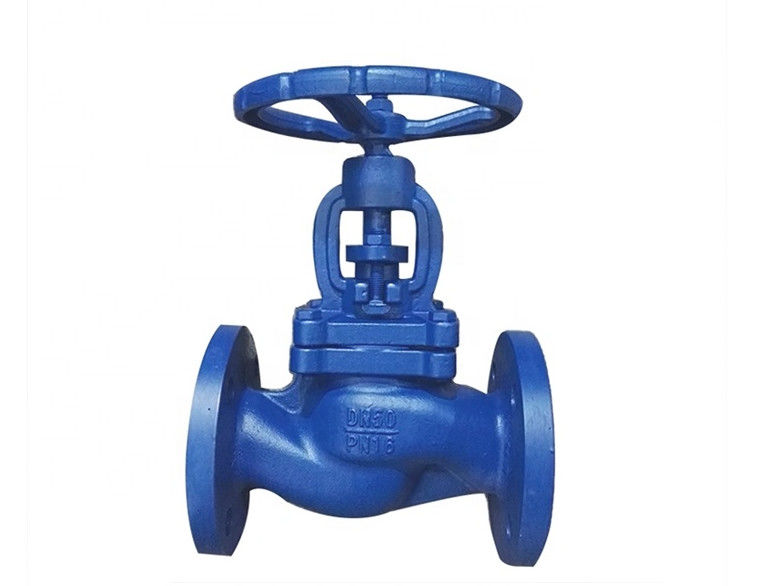

DIN 3356 GG25 PN16 Cast Iron Globe Valves Industrial Control Valves

DIN 3356 GG25 PN16 Cast Iron Globe Valves Industrial Control Valves
DIN 3356 GG25 PN16 Cast Iron Globe Valves Industrial Control Valves

Large Image :  DIN 3356 GG25 PN16 Cast Iron Globe Valves Industrial Control Valves

Product Details:
Place of Origin: hebei
Brand Name: junxi
Payment & Shipping Terms:
Minimum Order Quantity: Can discuss
Price: Can discuss
Delivery Time: 15~25
Payment Terms: L/C, T/T
Supply Ability: 1000
Detailed Product Description
Media: Water Power: Manual,Handwheel Operated,electric,Gear Operated
Structure: Globe Valves Port Size: Standard, Full, Reduced
Material: Stainless Steel,Forged Pressure: PN10 / 16
Size: DN15-DN300
High Light:

din 3356 cast iron globe valves

,

gg25 cast iron globe valves

,

pn16 industrial control valves

DIN3356 GG25 PN16Cast Iron Globe Valves



Applicable Standards

  • Nominal Dimension: Casting Valve: 2”-48”
  • Material:DI, CS, SS, DSS,LTCS, Inconel ,Monel, Bronze,Aluminum Bronze
  • Design Standard: API 6D, API 600, DIN3352, ASME B16.34
  • Operation type: Manual,Gear, Electric Actuator, Pneumatic Actuator, Hydraulic actuator
  • Nominal Pressure: Class 150-2500
  • Connection type: RF,RTJ,FF, SW, NPT, BW,ETC.





Product Range :

  1. Size: NPS 2”~ 48” , DN 50-1200
  2. Pressure Rating: Class 150 -2500 LB , PN 10~400
  3. Design standard:API 600 ,ASME B16.34,ISO 10432,EN1984.
  4. Face To Face Dimension: ASME B16.10,EN 558-1,EN 12982
  5. Connecting Dimensions : ASME B16.5 , ASME B16.47, ASM B 16.25 , EN 1092-1 , EN 12627.
  6. End Connection : Flange, BW .
  7. Body Materials : Carbon steel , Alloy Steel,Duplex/ Stainless Steel , Special Alloy .






Design: DIN 3356 / DIN EN 13789
Class: PN10 / 16
Face to face: DIN 3202-F1/ EN558.1-1
Flange: DIN EN1092.2
Testing: DIN EN12266
Size: DN15-DN300
*Bellows sealed globe valve available



Size / Working Pressure Operator Material of Main Parts
DN15-DN300: 10-16 Bar Hand wheel Body and Bonnet: Cast iron, Ductile iron;
Disc: Cast iron, Ductile iron;
Stem: Brass, Stainless steel AISI410/420/304/316;
Packing Gland: Cast iron, Ductile iron;
Body Seat Ring: Brass, Bronze, Stainless steel;
Disc sealing ring: Brass, Bronze, Stainless steel;
Packing: Graphite;
Hand wheel: Cast iron, Ductile iron.



DIN 3356 GG25 PN16 Cast Iron Globe Valves Industrial Control Valves 0
