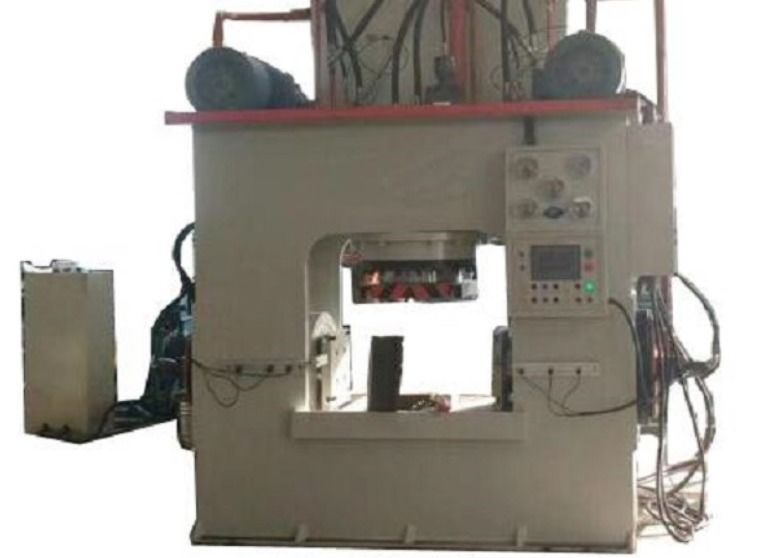

200t Pipe 1D 1.5D Stainless Steel Elbow Making Machine

200t Pipe 1D 1.5D Stainless Steel Elbow Making Machine
200t Pipe 1D 1.5D Stainless Steel Elbow Making Machine
video play

Large Image :  200t Pipe 1D 1.5D Stainless Steel Elbow Making Machine

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE
Model Number: custom
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box & Plastic wrapping
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10-15 sets/ month
Detailed Product Description
Packing:: Wooden Box Warranty:: 1 Year
Size: Custom Color: Green/white
Name: Elbow Forming Machine Operate: Automatic
Usage: Forming Stainless Steel Elbow Condition: New
Technology: Extrucding Forming
High Light:

200t stainless steel elbow making machine

,

1d stainless steel elbow making machine

,

1.5d elbow bending machine

200T pipe elbow machine

The series cold bending machine is mainly used for carbon steel, stainless steel 1D, 1.5D elbow cold push molding, push mode has the steel ball and core rod pushing in two ways. Core rod forming push system equipped with a semi-automatic mechanical demolding device.



The host comprises a body(frame),die-closing cylinder ,side pushing cylinder, demolding device. A control mechanism is composed of power station,limiting device ,pipeline and electrical control box, operation box.



The forming principle:pipe blank ,in the tunnel cavity by external locking,is pushed by hydraulic top rod from the guide section into forming cavity equiped inner core bending. then demold by demolding device.the whole process is control by PLC.

Standard export packing,woodbox loaded,airframe coverd with one layer transparent plastic film.





Pressure of main cylinder:500T Pressure of side cylinder:300T
daylight:1400mm Table size:1600mm×1000mm
Motor power:30KW Forming ability:≤φ273×10



Pressure of main cylinder:200T Pressure of side cylinder :150T
daylight:1000mm tablesize:1000mm×700mm
Motor power :15KW Forming ability :≤φ168×6
