| Force: | Hydraulic Press | Type: | Equal And Unequal |
|---|---|---|---|
| Thickness: | Sch 40 Sch 80 | Function: | Making Equal And Unequal Tee |
| Voltage: | 380V 50Hz 3Phases Or As Your Requirment | Condition: | New |
| Warranty: | 1 Year | Control System: | PLC System |
| Power(w): | 30 Kw | Size Range: | OD17-114 |
| High Light: | 4 inch cold forming tee machine,plc system cold forming tee machine,4 inch tee cold forming machine |
||
Tee forming machine
Cold forming tee machine has been widely used in the seamless carbon steel tee production line and now the technology of the cold forming tee machine has been innovated every year . Now the cold forming tee machine can divide into two type :one is automatic cold forming tee machine which use the full PLC to control the all machine action , pressure , electric, speed and etc . Operator only need to push the one time button then the tee is formed . Another type is manual type cold forming tee machine which need to adjust the machine action by pushing the button and also adjust the valve to control the pressure.

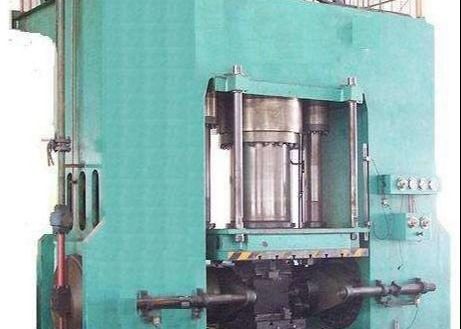

machine photo:
Mode NO: GIL114
Size range:OD17-114 Thickness:max8mm
Ram Cylinder:
| Piston | Ram | Cylinder | Valid Travel | Working Pres. | Qty |
| Φ400mm | Φ280mm | Φ490mm | 400mm | 32MPa | 1 |
| Φ380mm | Φ250mm | Φ470mm | 300mm | 32MPa | 2 |
Other Parts:
| 2grade oil pumper | 63SCY-14 | QTY | 1pc |
| CB-32 | QTY | 1pc | |
| Electric Engine | Y-18.5KW | QTY | 1pc |
| Y-7.5KW | QTY | 1pc |
Work capacity of the machine: 455kgs/hour
Power need per ton: 30kw
Dimension: L*W*H: 2700mm*800mm*2700mm
Tee moulds include:
21*21, 27*27,27*21,
34*34,34*27,
42*42,42*34,
48*48,48*42,
60*60,60*48,60*42,
73*73,73*60,73*48,
89*89,89*73,89*60,
114*114,114*89,114*73
