Product Details:
Payment & Shipping Terms:
|
| Force: | Hydraulic Press | Type: | Equal And Unequal |
|---|---|---|---|
| Thickness: | Sch 40 | Function: | Making Equal And Unequal Tee |
| Condition: | New | Warranty: | 1 Year |
| Control System: | PLC System | Power(w): | 30 Kw |
| Size Range: | OD17-325 | ||
| High Light: | sch40 tee forming machine,tee forming machine plc,sch40 tee machine |
||
Tee forming machine
Cold forming tee machine has been widely used in the seamless carbon steel tee production line and now the technology of the cold forming tee machine has been innovated every year . Now the cold forming tee machine can divide into two type :one is automatic cold forming tee machine which use the full PLC to control the all machine action , pressure , electric, speed and etc . Operator only need to push the one time button then the tee is formed . Another type is manual type cold forming tee machine which need to adjust the machine action by pushing the button and also adjust the valve to control the pressure.

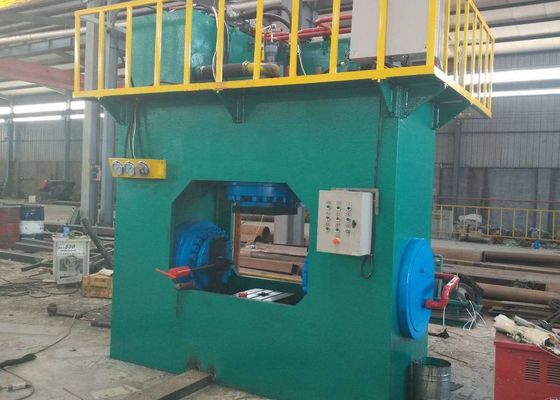

machine photo:
Technical details for MACHINE
Mode NO: GIL325
Size range:OD140-325 Thickness:max15mm
Details of the machine:
Ram Cylinder:
| Cylinder OD | Ram | Piston | Valid Travel | Qty |
| Φ1000mm | Φ600mm | Φ800mm | 600mm | 1 |
| Φ1000mm | Φ320mm | Φ800mm | 400mm | 2 |
| Φ219mm | Φ800mm | Φ180mm | 300mm | 1 |
| Other Parts: | ||||
| 3grade oil pumper | 63SCY-14-1B | QTY | 2pc | |
| CB-25 | QTY | 1pc | ||
| Electric Engine | Y-30kw | QTY | 2pc | |
| Y-4kw | QTY | 1pc | ||
| Water system 1set3m³ | power 4kw |
