Cs Hydraulic Mandrel Elbow Equipment Advanced Technology

China Cangzhou Junxi International Trade Co., Ltd. certification
China Cangzhou Junxi International Trade Co., Ltd. certification
I'm Online Chat Now

Cs Hydraulic Mandrel Elbow Equipment Advanced Technology

Cs Hydraulic Mandrel Elbow Equipment Advanced Technology
Cs Hydraulic Mandrel Elbow Equipment Advanced Technology

Large Image :  Cs Hydraulic Mandrel Elbow Equipment Advanced Technology

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE
Model Number: GIL114
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box & Plastic wrapping
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10-15 sets/ month
Detailed Product Description
Material: Stainless Steel Carbon Steel Packing:: Wooden Box
Warranty:: 1 Year Size: Upto 114
Color: Green Condition:: New
Name: Elbow Cold Forming Machine Total Power: 15Kw
LOCKING MAX TRAVELLING DISTANCE (mm): 650 PRODUCTION CAPACITY(mm): 33.4-114
High Light:

mandrel elbow equipment

,

cs elbow equipment

,

mandrel elbow machine

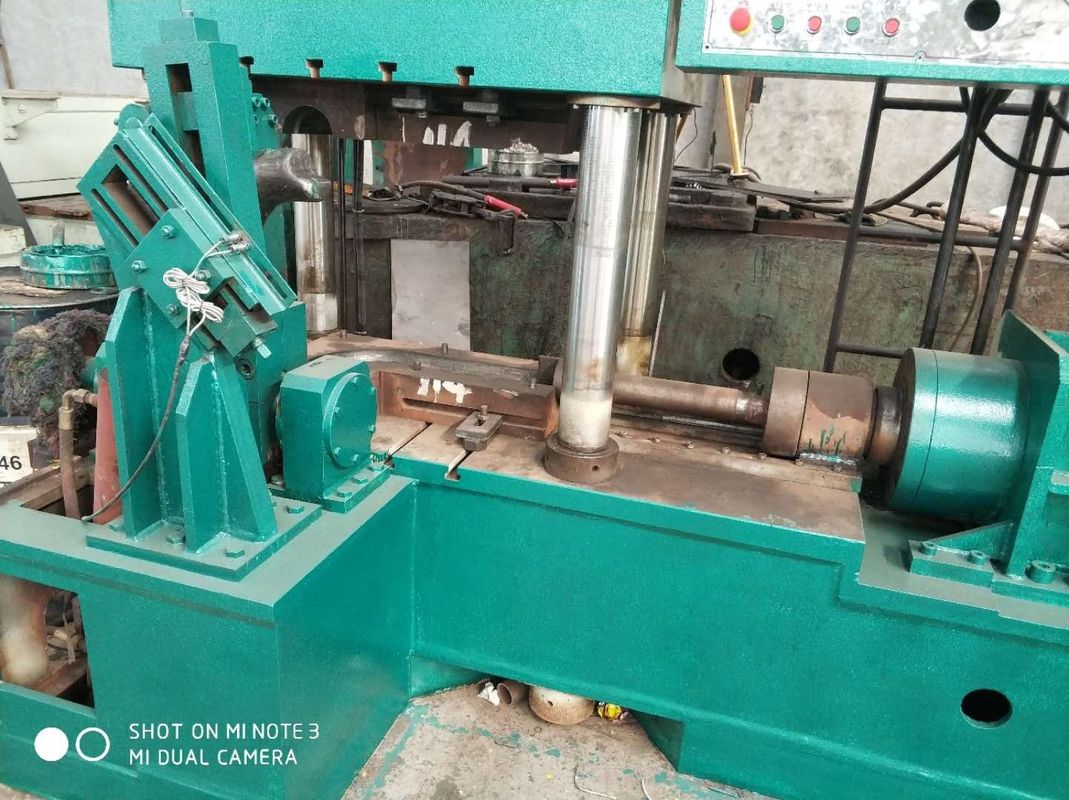

Hydraulic Elbow Cold Forming Machine With Advanced Technology

1. Elbow cold forming machine



· Elbow making machines (elbow cold forming machines) are designed and constructed for making small radius elbows with curvature of 1.0D to 1.5D and with diameter from 1/2" to 28" of stainless steel, cabon steel, alloy steel, etc. The production standard will be ASME B16.9, ASME B16.28, DIN2605, SMS, 3A, customized drawings is preferable, These produced elbows will be widely used in the connection of the industrial pipelines for the Petrochemical, Gas and Oil pipes, Electrical Power, Food, etc.



Cs Hydraulic Mandrel Elbow Equipment Advanced Technology 0

Cold Forming Elbow Machine is different from Hot Forming Mandrel Elbow Machine . For the Cold Pushing Elbow Machine, the machine molds have two parts one is outside die which contain upper die and down die . Another part of the mold is inside mandrel or inside ball .

2. Machine technical detail:

TYPE

PARAMETER

ZTW-114
PRODUCTION CAPACITY(mm) Ø 33.4-Ø114
LIQUID WOEKING PRESSURE(MPa) 25
LOCKING NOMINAL PRESSURE(KN) 2000
LOCKING MAX TRAVELLING DISTANCE (mm) 650
PUSHING NOMINAL PRESSURE(KN) 1500
PUSHING MAX TRAVELLING DISTANCE(mm) 600
DEMOULD NOMINAL PRESSURE(KN) 200
DEMOULD MAX TRAVELLING DISTANCE (mm) 500
POWER(KW) 15



3.  Company information

Our company is manufacturer of pipe fitting machines.We have focused on fitting machine 10years.Hot forming elbow machine, cold forming elbow machine, long bend machine,cold forming tee machine, pipe expanding machine,marking machine,median frequency heating machine,reducer machine, cap machine, shot blasting machine, cutting machine, bevelling machine,hydraulic press, CNC lathe machine, drill machine, ring rolling machine.



Cs Hydraulic Mandrel Elbow Equipment Advanced Technology 1Cs Hydraulic Mandrel Elbow Equipment Advanced Technology 2



4. Our services:

  Prepare-sale service:1). Provide professional technical advisory services. 2). Provide inspection and reception at any time.

  In-sale service:1). Provide technical information and technical parameters of the machine. 2). Responsible for machine installation and commissioning. 3). Answer customer questions and give customers effective advices.

  After-sale service:1). Machine spares within one year free replacement and provide free technical services.

Cs Hydraulic Mandrel Elbow Equipment Advanced Technology 3
