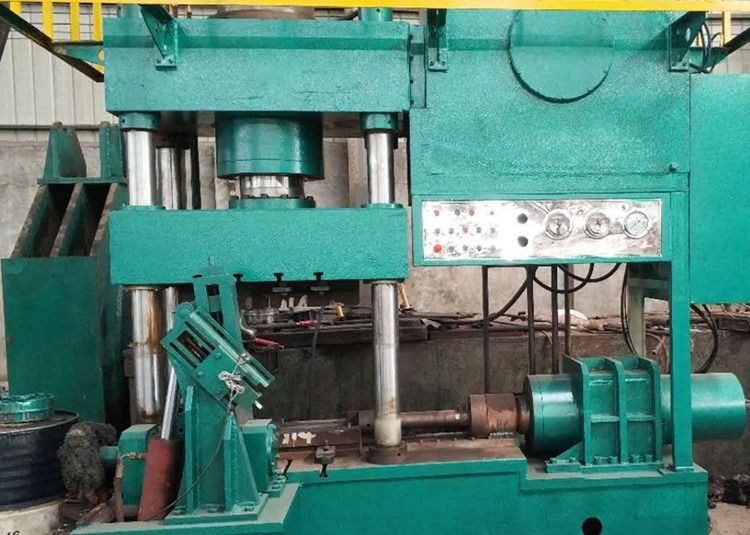

Hydraulic Stainless Steel Mandrel Elbow Cold Forming Machine

China Cangzhou Junxi International Trade Co., Ltd. certification
China Cangzhou Junxi International Trade Co., Ltd. certification
I'm Online Chat Now

Hydraulic Stainless Steel Mandrel Elbow Cold Forming Machine

Hydraulic Stainless Steel Mandrel Elbow Cold Forming Machine
Hydraulic Stainless Steel Mandrel Elbow Cold Forming Machine

Large Image :  Hydraulic Stainless Steel Mandrel Elbow Cold Forming Machine

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE
Model Number: GIL114
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box & Plastic wrapping
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10-15 sets/ month
Detailed Product Description
Material: Stainless Steel Packing:: Wooden Box
Warranty:: 1 Year Color: Green
Condition:: New Total Power: 15Kw
LOCKING MAX TRAVELLING DISTANCE (mm): 650 PRODUCTION CAPACITY(mm): 33.4-114
High Light:

hydraulic elbow cold forming machine

,

mandrel elbow cold forming machine

,

mandrel elbow making machine

Hydraulic stainless steel cold forming elbow machine

1.Main Features of Elbow making machines (Elbow cold forming machie):

· 1.Elbow making machine has attained the CE and ISO certificates;

· 2.High strength steel metal via gas shielded welding framed machine base is used on elbow making machine;

· 3.high rigidity and load balance are the main design features of the elbow making machine in order to keep excellent accurancy;

· 4.Elbows can be formed in one cold forming process with no needs for any calibration

· 5.Elbow making machine has the features of energy saving, high working efficiency, less labor cost, batch production

· 6.Elbow making machine adopts imported hydraulic system and electric appliances.

· 7.Elbow making machie adopts PLC button centralized control, uses touch screen, applys proportional valve to regulate pressure. It can be adjusted and operated manually and automatically.



Hydraulic Stainless Steel Mandrel Elbow Cold Forming Machine 0

Cold Forming Elbow Machine is different from Hot Forming Mandrel Elbow Machine . For the Cold Pushing Elbow Machine, the machine molds have two parts one is outside die which contain upper die and down die . Another part of the mold is inside mandrel or inside ball .

2. Machine technical detail:

TYPE

PARAMETER

ZTW-114
PRODUCTION CAPACITY(mm) Ø 33.4-Ø114
LIQUID WOEKING PRESSURE(MPa) 25
LOCKING NOMINAL PRESSURE(KN) 2000
LOCKING MAX TRAVELLING DISTANCE (mm) 650
PUSHING NOMINAL PRESSURE(KN) 1500
PUSHING MAX TRAVELLING DISTANCE(mm) 600
DEMOULD NOMINAL PRESSURE(KN) 200
DEMOULD MAX TRAVELLING DISTANCE (mm) 500
POWER(KW) 15



3.  Company information

Our company is manufacturer of pipe fitting machines.We have focused on fitting machine 10years.Hot forming elbow machine, cold forming elbow machine, long bend machine,cold forming tee machine, pipe expanding machine,marking machine,median frequency heating machine,reducer machine, cap machine, shot blasting machine, cutting machine, bevelling machine,hydraulic press, CNC lathe machine, drill machine, ring rolling machine.



Hydraulic Stainless Steel Mandrel Elbow Cold Forming Machine 1Hydraulic Stainless Steel Mandrel Elbow Cold Forming Machine 2



4. Our services:

  Prepare-sale service:1). Provide professional technical advisory services. 2). Provide inspection and reception at any time.

  In-sale service:1). Provide technical information and technical parameters of the machine. 2). Responsible for machine installation and commissioning. 3). Answer customer questions and give customers effective advices.

  After-sale service:1). Machine spares within one year free replacement and provide free technical services.

Hydraulic Stainless Steel Mandrel Elbow Cold Forming Machine 3
