Product Details:
Payment & Shipping Terms:
|
| Media: | Water,Oil,Gas,Acid | Power: | Manual,Handwheel Operated,electric,Gear Operated |
|---|---|---|---|
| Structure: | Ball Valve | Port Size: | 1/2"~48" |
| Material: | Ss304 /306L | Pressure: | ,Low Pressure,High Pressure |
| Type: | BALL VALVES | Connection: | Flange Ends |
| Application: | General | ||
| High Light: | 1/2 ss 316 ball valve,threaded ss 316 ball valve,1/2 2 pc ball valve |
||

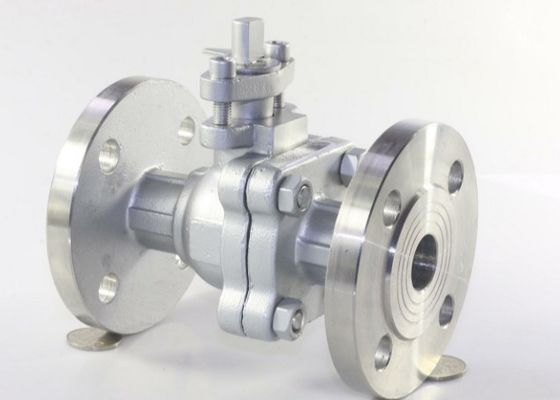

Oil And Gas 2 PC flange / threded SS 316 Ball Valve
type: threaded end, flanged end
material: ss 304/ ss 304l/ ss 316/ ss316l
working pressure: 1000 wog for 2-pc ball valve threaded end
pn 16, 150lbs/ 300lbs, jis 10k/20k for 2-pc ball valve flanged end
bore type: full bore
threaded end: npt, bspt, din 2999
mounting pad: optional
operator: optional lock device handle.
· Fire safe Design
· V Port ball available in 30°/ 60°/ 90°
· Various seat materials for different working temperature conditions
· Bare shaft, with lever, gear operator, pneumatic actuator, electric actuator , positioner, limit switch box, etc.
· Special alloy material
| Part Name | Material | ||
| Body/Bonnet | WCB | LCB | CF8/CF8M |
| Ball | A105/F304/F316 | F304/F316 | F304/F316 |
| Stem | F6A/F304/F316 | F304/F316 | F304/F316 |
| Seat Ring | PTFE/R-PTFE/A105/F304/F316 | ||
| Gasket | 304 + Flexible Graphite | ||
| Packing | PTFE | ||
| Bolts | B7 | B7 | B8 |
| Nuts | 2H | 4 | 8 |
