| Media: | Water,Oil,Gas | Power: | Manual,Handwheel Operated,electric,Gear Operated |
|---|---|---|---|
| Structure: | Metal Gate Valve | Port Size: | DN40-DN1000 |
| Material: | Stainless Steel | Pressure: | PN16/10 |
| High Light: | dn40 flange gate valve,nbr seat flange gate valve,dn40 8 inch gate valve |
||

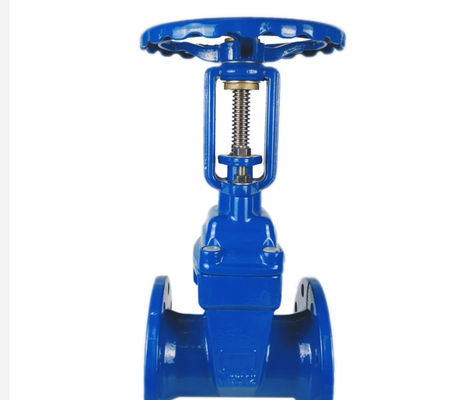

two Way Motor Gate Valve flange 8 Inch Actuator Electrical Gate Valve Water
Specification Details
Design Std:EN 1171
Size:DN40--DN1000
Pressure Rating: PN16,PN10
Seat: NBR,EPDM, VITON,PTFE,NEOPRENE
Face to Face: EN 558 Series 14(DIN 3202 F4)
Pressure Testing:DIN EN593/DIN EN12266-1
Body/Bonnet: Ductile iron EN-GJS-500-7/EN 1563
Flange Ends: DIN EN1092-2/Type B
Working temperature:-10 to +120℃
Gate Valve:
| Standard |
DIN 3352-F4 ,DIN 3352-F5, BS5163, AWWA C509 ,AWWA C515 Flange drilling is according to DIN2501, BS4504 and ANSI B16.1 PN10,PN16,PN25 |
| Type | Flanged End , Socked End ,Mechanical Joint, non rising stem / rising stem |
| Material |
Body: Ductile iron GGG40/50 or Cast IronGG25 Wedge : Ductile iron GGG40/50+EPDM/NBR or metal seated Stem: stainless steel 2Cr13 , SS304,SS316 Bolt and Nuts : Carbon Steel with zinc plated or SS304,316 |
| Coating | Internal and external with fusion bonded epoxy coating min250μm |
|
NO.
|
Part
|
Material
|
|
1
|
Body
|
ASTM A536.65-45-12
|
|
2
|
Resilient Wedge
|
ASTM A536.65-45-12+EPDM
|
|
3
|
Stem
|
AISI 420
|
|
4
|
Gasket
|
EPDM
|
|
5
|
Bonnet
|
ASTM A536.65-45-12
|
|
6
|
Packing
|
EPDM
|
|
7
|
Yoke
|
ASTM A536.65-45-12
|
|
8
|
Stem Bushing
|
Brass Hpb59-1
|
|
9
|
Gland
|
ASTM A536.65-45-12
|
|
10
|
Stem Nut
|
Brass Hpb59-1
|
|
11
|
Handwheel
|
ASTM A536.65-45-12
|
|
12
|
Washer
|
Brass Hpb59-1
|
|
13
|
Gland Nut
|
Carbon Steel Zinc Plated
|
|
14
|
Stud
|
Carbon Steel Zinc Plated
|
|
15
|
Flat Washer
|
Carbon Steel Zinc Plated
|
Design Feature
1: Full bore or reduced bore
2: Two-Piece downstream sealing
3: Fire safe design(API 607)
4: Blowout-proof system
5: Anti-static design
6: Fugitive emission testing(optional)
