Product Details:
Payment & Shipping Terms:
|
| Media: | Water,Oil | Power: | Manual,Handwheel Operated,electric,Gear Operated |
|---|---|---|---|
| Structure: | Metal Gate Valve | Port Size: | DN40 |
| Material: | Stainless Steel 304/306l | Pressure: | PN16 |
| High Light: | pn10 soft seal gate valve,ductile iron soft seal gate valve,pn10 ductile iron gate valve |
||

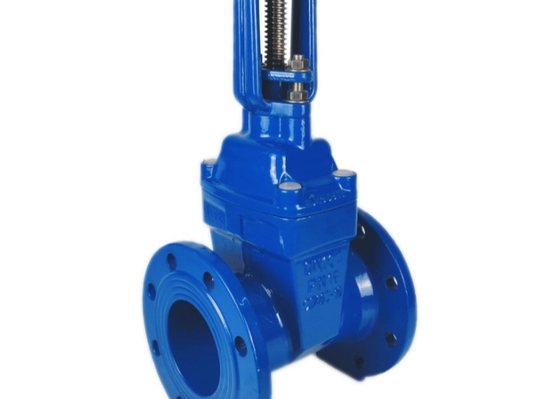

Soft seal gate valve flange drain gate valve ductile iron
Design Std:EN 1171
Size:DN40--DN1000
Pressure Rating: PN16,PN10
Seat: NBR,EPDM, VITON,PTFE,NEOPRENE
Face to Face: EN 558 Series 14(DIN 3202 F4)
Pressure Testing:DIN EN593/DIN EN12266-1
Body/Bonnet: Ductile iron EN-GJS-500-7/EN 1563
Flange Ends: DIN EN1092-2/Type B
Working temperature:-10 to +120℃
Gate Valve:
|
Part Name
|
Part Material
|
|
|
Body/Bonnet
|
Ht200
|
QT450-10
|
|
Wedge/Disc
|
HT200+NBR
|
QT450+NBR
|
|
Stem
|
2Cr13
|
1Cr13
|
|
Packing
|
NBR
|
NBR
|
|
Suitable Temp
|
-15~121℃
|
-30~121℃
|
|
Suitable Medium
|
Water,Sea Water,Sewage,Oil,Paper Pulp Etc.
|
|
|
Product Specification
|
Design Spec
|
Face to Face
|
Flange End
|
Test & Check
|
Marking
|
|
AWWA C509-94
|
GB/T 12221
|
GB 9113
|
GB/T13927
|
GB/T 12220
|
