Product Details:
Payment & Shipping Terms:
|
| Warranty: | One Years | Features: | Anti-static |
|---|---|---|---|
| Power: | Manual,Hydraulic,Pneumatic,Electric,Handwheel Operated | Port Size: | 1/2" ~ 48" |
| Application: | General | Appliaction: | Water ,oil ,gas And So On |
| Working Pressure: | PN16 | Seat Material: | PTFE, RPTFE, DEVLON, Molon,PEEK,Metal Seat |
| High Light: | manual wafer butterfly valve dn150,antistatic manual wafer butterfly valve dn150,dn150 wafer type butterfly check valve |
||

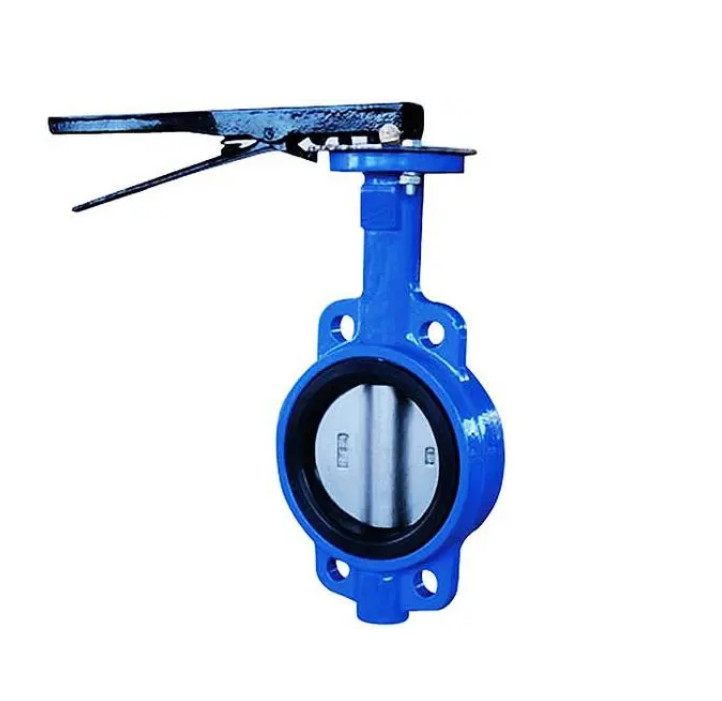

PN10/16 Ductile Iron Cast Iron Wafer or Lug Type Butterfly Valve
The butterfly plate of the wafer butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical
channel of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis, and the rotation angle is between
0°-90°, which can play a role in flow adjustment. When the butterfly plate rotates to 90°, the valve reaches the maximum Opening.
The wafer butterfly valve is simple in structure, small in size and light in weight, and consists of only a few parts. Moreover,
it can be opened and closed quickly by rotating 90°, and the operation is simple. At the same time, the valve has good fluid
control characteristics.
structure
It is mainly composed of valve body, valve stem, butterfly plate and sealing ring. Valve body cylindrical, short axial length, built-in butterfly plate.
The characteristics of
1. Butterfly valve has the characteristics of simple structure, small volume, light weight, material consumption, small installation size, quick switch, 90° reciprocating rotation, small driving torque, etc., used to cut off, connect and adjust the medium in the pipeline, with good fluid control characteristics and close sealing performance.
2, butterfly valve can transport mud, at the mouth of the least liquid accumulation. Good sealing can be achieved under low pressure. Good regulation performance.
