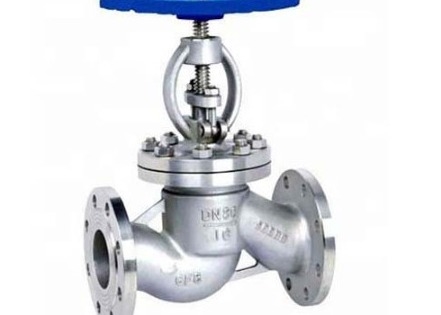

Din Pn16-Pn40 Industrial Control Valves , Cast Steel Globe Valve

Din Pn16-Pn40 Industrial Control Valves , Cast Steel Globe Valve
Din Pn16-Pn40 Industrial Control Valves , Cast Steel Globe Valve

Large Image :  Din Pn16-Pn40 Industrial Control Valves , Cast Steel Globe Valve

Product Details:
Place of Origin: China
Brand Name: JUNXI
Certification: CE
Model Number: PN16-PN40
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Discussable
Packaging Details: In wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 set/days
Detailed Product Description
Material: Stainless Steel304 Technics: Forged
Shape: Globe Valve Connection: Welding
Type: Valve Color: White Or Customized
Product Name: Professional Valve Manufacturer Gate Valve Wheel HandlIndustrial Control Valves Application: Gas/oil/water
Packing: Containers Size: Customized Size
High Light:

din industrial control valves

,

pn40 industrial control valves

,

pn16 cast steel globe valve

DIN PN16-PN40 High Temperature Resistance Heat Transfer Oil Cast Steel Bellow Seal Globe Valve

  1. Stainless steel globe valve has a Simple structure, manufacture and maintenance more convenient
  2. Good sealing, Long service life
  3. Operation: manual, gear operated, motor operated, pneumatic operated
  4. The Globe valve stem and valve seat sealing surface axis vertical.
  5. Open or close the valve stem travel relatively short, and very reliable cutting action, making this valve is suitable for medium and cutting off or regulating use

Product advantage

1. The bellows seal the globe valve, the key component of which is the metal bellows. The lower end and the valve stem assembly are automatically hobbing welded, and the upper end is automatically hobbing welding with the connecting plate to form a metal barrier between the fluid medium and the atmosphere to ensure zero leakage of the valve stem

2. Valve plate adopts conical design, sealing surface and medium form a flow line, better sealing performance, longer service life

3. Double seal design, avoid leakage, in line with international seal standards

4. The valve cover is equipped with a grease joint, which can directly lubricate the valve stem, nut and shaft sleeve.



Stainless steel globe valve Service Condition
Size DN15-DN200
Suitable medium water, steam, oil, gas, acid
Working pressure 1.0Mpa,1.6Mpa,2.5Mpa
Working Temperature -20°C~225°C
Material of Globe valve Main construction
Body, Bonnet A216-WCBCF8/CF8M
Disc SS/WCB/CF8/CF8M
Gasket PTFE
Stem Cr13
Packing PTFE/ soft graphite
Gland stainless steel
Gland Flange carbon steel/stainless steel
Hand wheel Ductile cast iron
Hand wheel nut Carbon steel
Stem nut

A439-D2
