Standard Rising Stem Pn16 Dn250 Cast Steel Globe Valve For Oil Gas

China Cangzhou Junxi International Trade Co., Ltd. certification
China Cangzhou Junxi International Trade Co., Ltd. certification
I'm Online Chat Now

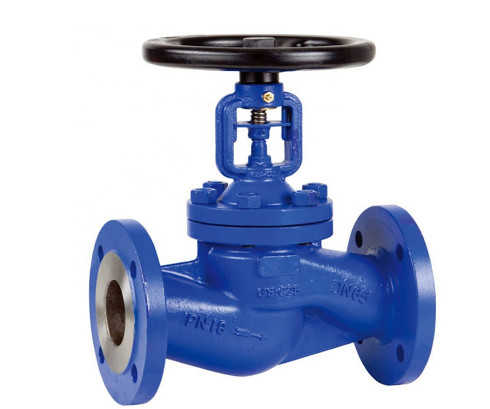

Standard Rising Stem Pn16 Dn250 Cast Steel Globe Valve For Oil Gas

Standard Rising Stem Pn16 Dn250 Cast Steel Globe Valve For Oil Gas
Standard Rising Stem Pn16 Dn250 Cast Steel Globe Valve For Oil Gas

Large Image :  Standard Rising Stem Pn16 Dn250 Cast Steel Globe Valve For Oil Gas

Product Details:
Place of Origin: China
Brand Name: JUNXI
Certification: CE
Model Number: PN16-PN40
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Discussable
Packaging Details: In wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 set/days
Detailed Product Description
Technics: Forged Shape: Globe Valve
Connection: Welding Color: Blue
Product Name: Professional Valve Manufacturer Gate Valve Wheel HandlIndustrial Control Valves Application: Water
Packing: Containers Size: DN50
Working Temperature: 0 -- 150ºC Body Material: A105
High Light:

dn250 cast steel globe valve

,

pn16 cast steel globe valve

,

rising stem pn16 globe valve

Standard Rising Stem Pn16 Dn250 Cast Steel Globe Valve for Water Oil Gas

  1. Stainless steel globe valve has a Simple structure, manufacture and maintenance more convenient
  2. Good sealing, Long service life
  3. Operation: manual, gear operated, motor operated, pneumatic operated
  4. The Globe valve stem and valve seat sealing surface axis vertical.
  5. Open or close the valve stem travel relatively short, and very reliable cutting action, making this valve is suitable for medium and cutting off or regulating use

Product advantage

1. The bellows seal the globe valve, the key component of which is the metal bellows. The lower end and the valve stem assembly are automatically hobbing welded, and the upper end is automatically hobbing welding with the connecting plate to form a metal barrier between the fluid medium and the atmosphere to ensure zero leakage of the valve stem

2. Valve plate adopts conical design, sealing surface and medium form a flow line, better sealing performance, longer service life

3. Double seal design, avoid leakage, in line with international seal standards

4. The valve cover is equipped with a grease joint, which can directly lubricate the valve stem, nut and shaft sleeve.

The bellows are welded to the valve stem to maintain stable operating performance and avoid vibration of the stem caused by the vibration of the valve plug. It is most suitable for the pipeline with steam, flammable, explosive, thermal oil, high purity, toxic and other media.



Globe valves, so-called because of their outside shape, are widely used in plant piping. They are suitable for manual and automatic operation.

Unlike the gate valve, globe valve can be used for

regulating flow or pressures as well as complete shut off of flow.

Materials of Main Parts



NO
Name
Material
1
valve body
GS-C25 1.7363 1.4308,1.4408,1.4306,1.4301
2
Disc
ASTM A182-Gr.F6a ASTM 182-F22 ASTM A182 F304,F316,F321,F304L,F316L
3
Bolzen
ASTM A182-Gr.F6a ASTM 182-F22 ASTM A182-F304,F316,F321,F304L,F316L
4
Bellows subassembly
1Cr18Ni9Ti,304,316
5
Valve stem
ASTM A182-Gr.F6a ASTM 182-F22 ASTM A182-F304,F316,F321,F304L,F316L
6
Valve deck
GS-C25 1.7363 1.4308,1.4408,1.4306,1.4301
7
Packing
soft graphite,PTFE
8
Packing Gland
GS-C25 1.7363 1.4308,1.4408,1.4306,1.4301
9
Locating plate
25,45,304,316
10
Stem nut
Copper alloy C95200
11
Hand wheel
WCB/QT400-18
12
Stud
ASTM A193-B7,A193-B8,193-B8M
13
Hexagon nut
ASTM A194-2H,A194-8,194-8M
14
Washer
soft graphite+ stainless,PTFE

Standard Rising Stem Pn16 Dn250 Cast Steel Globe Valve For Oil Gas 0
