Product Details:
Payment & Shipping Terms:
|
| Power: | Manual,Handwheel Operated,electric,Gear Operated | Port Size: | Standard, Full, Reduced |
|---|---|---|---|
| Material: | Carbon Steel | Size: | PN16 DN150 |
| High Light: | pn16 globe valve flange type,wcb globe valve flange type,dn150 flanged globe valves |
||
Cangzhou Junxi International Trade Co., Ltd.
Our company produce and export all kinds of carbon steel pipe fittings,Seamless Pipe Fittings, Our city Cang Zhou city is the hometown of carbon steel pipe fittings. We have exported to many countries, such as, Russia, Egypt Malaysia, India, Turkey, Indonesia, Jordan etc.
About the pipe fitting machine, we have different type for every machine.We have hot forming elbow machine, cold forming elbow machine, cold forming tee machine, beveling machine, shot blasting machine, etc.. Machine guarantee is one year. If our clients machine has problem, our after sale service person will come and help the clients solve the problem as quickly as possible.
About the pipe fitting machine, we have different type for every machine.We have hot forming elbow machine, cold forming elbow machine, cold forming tee machine, beveling machine, shot blasting machine, etc.. Machine guarantee is one year. If our clients machine has problem, our after sale service person will come and help the clients solve the problem as quickly as possible.

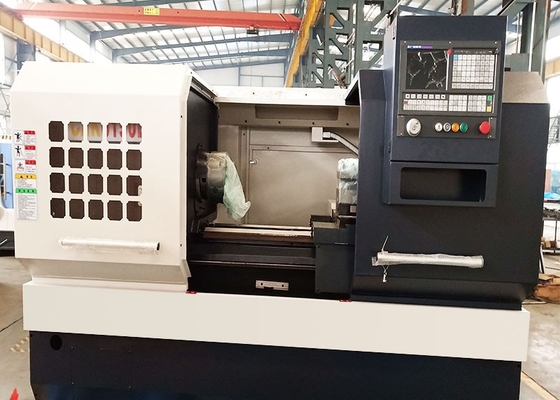

The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
◆Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.
◆Both the machine tool guide rail and the sliding saddle guide rail adopt hard guide rails of special materials, which are super hard and wear-resistant, durable, and have good machining accuracy retention after high-frequency quenching.
◆Adopt domestic famous ball screw and high-precision screw bearing.
◆Each lubrication point adopts a forced automatic lubrication device for fixed-point and quantitative lubrication of the lead screw and guide rail. When there is an abnormal state or the amount of oil is insufficient, a warning signal is automatically generated.
◆The guide rail is equipped with a scraping device to prevent the guide rail from being corroded by iron filings and coolant, and to facilitate the cleaning of the iron filings.
|
Model
|
CK6140*750mm
|
|
Processing ability
|
Unit ( mm )
|
|
Max. swing over bed
|
400
|
|
Max. swing over slide
|
240
|
|
Max. Processing length
|
750mm(Optional:500/1000/1500)
|
|
Travel
|
|
|
X/Z axis travel
|
280/750
|
|
Spindle nose
|
A2-6
|
|
Spindle
|
|
|
Spindle bore diameter
|
82
|
|
Pull tube hole diameter
|
65
|
|
Spindle inner hole taper
|
40°
|
|
Spindle series
|
stepless
|
|
Max. spindle speed
|
150-2000 rpm
|
|
Workpiece clamping mode
|
Manual chuck K8-200
|
|
Main motor power
|
5.5/7.5 kW
|
|
Feed turret
|
|
|
X/Z axis torque
|
5/7.5 N.m
|
|
X/Z axis rapid speed
|
6/8 m/min
|
|
Turret type
|
Electicity
|
|
Tool shank size
|
20×20
|
|
Turret repeatability
|
≤0.004
|
|
Tailstock
|
|
|
Tailstock diameter
|
60
|
|
Tailstock travel
|
100
|
|
Tailstock center taper
|
Morse 4#
|
|
Others
|
|
|
Machine net weight
|
1800kg
|
|
Machine dimension(L×W×H)
|
2200×1160×1620
|
|
Power supply(power/ electric current)
|
11kW/20A
|
|
Standard configuration
|
|
|
Chuck
|
Ф200 manual chuck
|
|
Tailstock
|
Manual tailstock
|
|
Electricity turret
|
4 position
|
|
X,Z axis screw bearing
|
Domestic
|
|
Spindle bearing
|
Domestic P5
|
|
Machine casting
|
Highquality resin sand casting
|
|
Spindle assembly
|
Assembly spindle
|
|
Oil paint
|
Can be customized color
|
|
Lubrication
|
Domestic
|
