Product Details:
Payment & Shipping Terms:
|
| Type:: | Band Saw Machines | Key Selling Points:: | High Productivity |
|---|---|---|---|
| Application:: | Bevel Pipe And Carbon Steel Pipe Fittings | Use:: | Math Pipe And Pipe Fittings |
| Model:: | Q378 Hook Shot Blasting Machine | Name: | Auto Beveling Machine |
| Color: | Blue | Raw Material: | Carbon Steel |
| High Light: | cs hook type shot blasting machine,11kw hook type shot blasting machine,hook shot blasting machine pipe beveling |
||

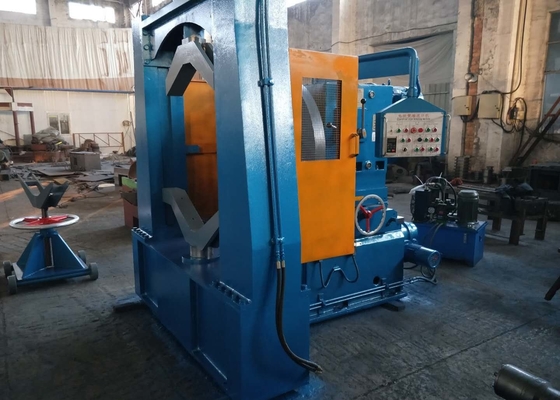

Q378 hook shot blasting machine Carbon Steel Pipe Beveling Machine
1. Product Description:
pipe fitting bevelling machine is used for so beveling for the carbon steel ,alloy steel , and stainless steel pipe fittings. The pipe fitting bevelling machine includes : machine table (this is movable table . It can adjust up and down position by adjusting one screw. pipe fitting bevelling machine plate form which we can change the beveling speed and all machine action will be placed on the plate form , pipe fitting bevelling machine fixture which is used for fix the work piece on the machine side.Electric power beveling machine has one head chuck for beveling the work piece such as pipe , elbow , tee , reducer ,and cap . First step, we need lock the work piece on the Electric power beveling machine and we use the hydraulic lock for fix the work piece.
| No. | Part name | quantity | Main components | |
| 1 | Shot blasting machine assembly | 2 | set | 11KW motor, special motor for shot blasting machine, blades, shot distributing wheel and directional sleeve are made of high-profile wear-resistant material. |
| 2 | Shot blasting room | 1 | set | Workroom welding parts, the outer dimension of the room is 1.6m× 1.6m, the door height is 2m, and the room body guard plate is made of high-profile wear-resistant guard plate and manganese plate. |
| 3 | Electric hoist | 2 | set | 1 ton |
| 4 | Rotation mechanism | 1 | set | Reducer, hook, gear, etc. |
| 5 | Hoist | 1 | set | 1 cycloidal reducer, 2.2KW, transmission system, housing, belt, hopper, tensioning device, etc. |
| 6 | Splitter | 1 | set | 1 cycloidal reducer, 2.2KW, transmission system, housing, belt, hopper, tensioning device, etc. |
| 7 | Screw conveying system | 1 | set | Shell, screw shaft, screw plate, etc. |
| 8 | dust pelletizing system | 1 | set | Pulse environmental protection dust collector, fan 5.5KW, corresponding pipes, etc. |
| 9 | Electronic control system | 1 | set | Power distribution cabinet, operation console, wires and cables, etc.. |
|
Each machine includes two partial hosts:2.5m✖*️2.2m✖*️5.3m Dust removal:1m✖*️1m✖*️4.2m Single weight: 5 tons |
||||
2. Company Information:
Guozhong is manufacturer of pipe fitting and pipe fitting machine such as Cold forming elbow machine, Hot forming elbow machine, Cold forming tee machine, Beveling machine, Shot blasting machine, Marking machine, Sizing machine, Ring rolling machine. All of product have good quality, and we have our own factory, so we can guarantee the source of supply and if the machine have any needs, we will repair and guide clients for production.
