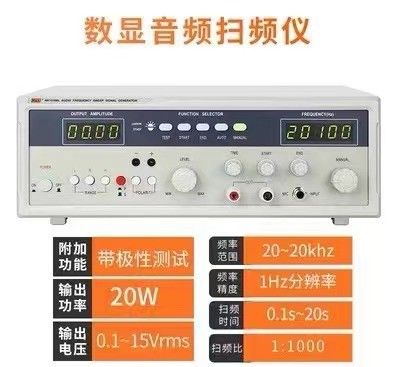

Brand:JX
Model:JXAudioFrequencyGenerator
CountryofOrigin:CHINA
CountryofManufacture:CHINA
Features:
1.Advancedcircuitdesignwithimported
componentsensureminimumaccuracy
deviation
2.Signalfrequency:10Hz-~1MHz,±3%
3.Waveform:sineandsquare≤0.5
4.Intensityofoutputsignal:≥10Vp-p
5.60dBaccurateattenuatein6steps
TechnicalSpecification:
Oscillationfrequency:1range:10Hzto
100Hz/10range:100Hzto1Khz/100
range:1KHzto10KHz1Krange:10KHzto
100KHz10Krange:100KHzto1MHz
Frequencyaccuracy:±3%+1HzOutput
impedance:600ΩOutputattenuator:0dB,
10dB,20dB,30dB,40dB,60dB(6rangesfor
selection)
Characteristicsofsinewave
Outputvoltage:≥5VrmsFrequencyresponse:
10Hzto1Mhz:±0.5dB
Distortion:400Hzto20KHz:≤0.1%/100Hzto
100KHz:≤0.3%/(100Hz:x10range)/50Hzto
200KHz:≤0.5%/20Hzto500KHz:≤1%/10Hz
to1KHz:≤1.5%
Characteristicsofsquarewave
outputvoltage:≥10Vp-pRise/downtime:
200ns(atmaximumoutput)Dutyratio:45:55
(1KHz,atmaximumoutput)
Synchronizingrange:≤1%Vrms
Maxinputvoltage:15V(DC+ACpeakvalue
Temperature/humidity:10°Cto35°C/within
85%RH
powersupply:220V/110V±10%;50/60Hz
Dimensions:Approx.
128(W)x190(H)x239(D)mm
Weight:Approx.3KG
RequiredDocuments:
OriginalCatalogmustbesubmitted
Distributor/ManufactureAuthorizationLetter
mustbesubmitted
ISOCertificate(Product)
Warranty:OneYearWarranty
