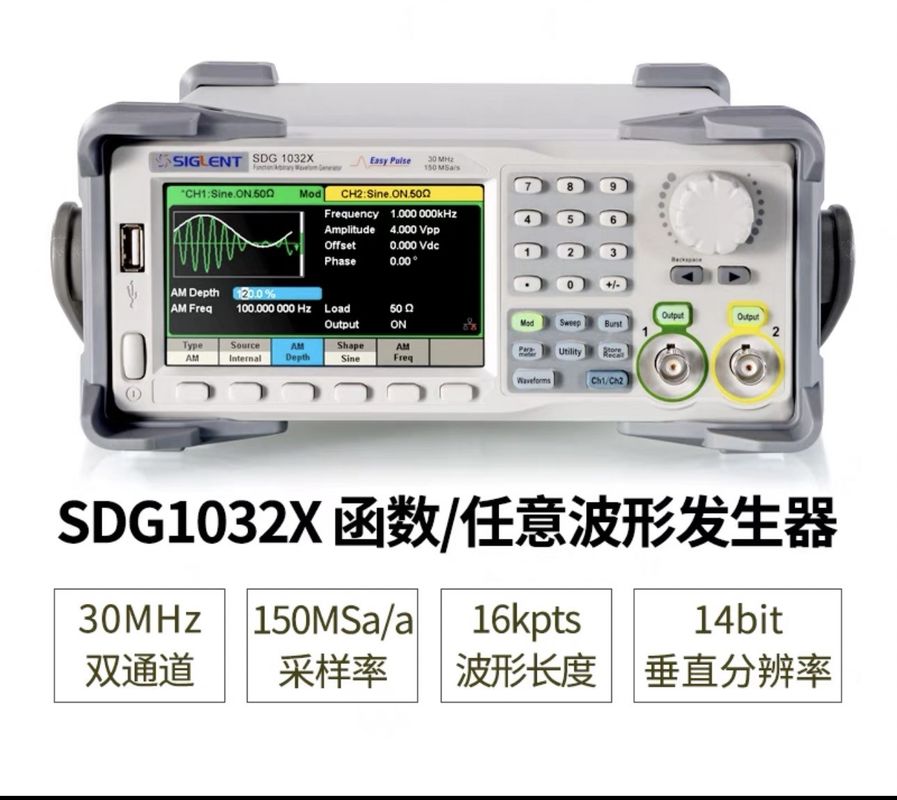

negative ramp.
larger than ± 0.5dB, 100KHz to 3MHz not
larger than ± 1dB
100KHz to 6MHz not larger than ± 2dB,
100KHz to 10MHz not larger than ± 3dB,
100KHz to 15MHz not larger than ± 3.5dB
TTL output
Level: TTL the low level of impulse wave is
not larger than 0.4v, high level is not smaller
than 2.4v
Rise time: Not larger than 30ns
Modulating frequency: 400Hz internal, 01MHz
external
Modulation Depth: 0-85%
Deviation: 0-10%
Modulating frequency: 400Hz internal, 01MHz
external
Distortion of modulation frequency: ≤1.5%
(fc=500KHz fm=1kHz,10%)
Power output (Model with W)
Amplitude: Not smaller than 20Vp-pPower
SWEEP
Sweep mode: Liner; logarithmic
Sweep speed:10ms~5s
Sweep ratio: ≥ 1000:1
Output amplitude: 7Vp-p
Output impedance: 600Ω
VCF input
Output voltage: -5V~0V ± 10%
Max ratio of voltage control: 1000:1
Input signal: DC-1KHz
Frequency Meter
Measuring range :1Hz-20MHz
input impedance: Not smaller than 1MΩ / 20pF
Sensitivity: 10mVrms
Max input: 150V(AC+DC)(attenuator
included)
Input attenuation: 20db
Measuring error: Not larger than 0.003% ±
1digit
Power Supply: 220V/110V±10%, 50/60HZ
Dimension: Approx. 310X230X90mm
Weight: About 4 kg
Required Documents:
Original Catalog must be submitted
Manufacture Authorization Letter must be
submitted
ISO Certificate (Product)
Warranty: One Year Warranty
