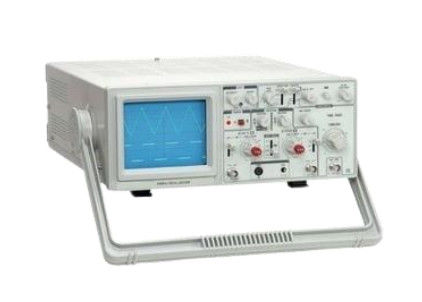

Fast Response Oscilloscope Dual Trace Cost Effective

Large Image : Fast Response Oscilloscope Dual Trace Cost Effective

Product Details:

Place of Origin:	china
Brand Name:	JUNXI
Certification:	iso
Model Number:	JXOD-25

Contact Now

Detailed Product Description

Highlight:

Dual Trace Oscilloscope

Fast Response Oscilloscope

Cost Effective Oscilloscope

Technical Specification

Channels: 2+Ext .Trigger

Bandwidth: 200MHz

Rising time: 1 .8ns

Time base: 1ns to 50s/div

Real time sample rate: 1GSa/a

Equivalent sample rate: 50GSa/s

Input impedance: 1M ou//13pF

Input coupling: DC AC GNDTrigger Edge

video pulse delayAcquisition modes Auto normal single

Trigger sources: CH1 CH2 Ext Ext/5 Ext(50OUM)

Horizontal accuracy: +-0 .01%

Vertical sensitivity: 2 mV/div to 5V/div

Vertical resolution: 8bit

Input voltage: 400V (DC+AC peak)

5Vrms@50OUM

Storage: 10 waveforms 10 steps

Sample points : 1024points

X-Y Bandwidth: 200MHzPhase diff +-3

degrees

Display A/CA: mono/color 320*240

resolution

Power supply: Worldwide 100-225 V/40VA

Interface: USB port

Dimension: 03(W)*145(H)*288(D)mm

Weight: 5kg
