Reliable High Precision Analogue Oscilloscope Easy Use

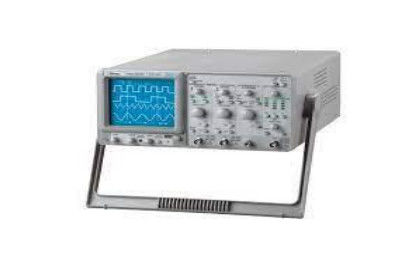

Large Image : Reliable High Precision Analogue Oscilloscope Easy Use

Product Details:

Place of Origin:	china
Brand Name:	JUNXI
Certification:	iso
Model Number:	JXAO-75

Contact Now

Detailed Product Description

Highlight:

Reliable analogue oscilloscope

High Precision analogue oscilloscope

Easy Use analogue oscilloscope

Technical Specification

CRT:6 inch rectangular screen with internal gratitude,

8x10div (1div = 1cm)

Display mode:CH1. CH2. ADD, ALT, CHOP

Deflection factor:5mV/div to 5V/div ±3%.

1mV/div to 1V/div ± 5%(X5).10 steps

Rise time:≤17.2ns

Max. Input voltage:250V (DC+ACpeak) ≤1KHz

Input coupling:AC. DC. GND

Polarity selection:±(CH2 only)

Display mode:1,10, X-Y

Time Base:0.2us/div to 0.2s/div,9 ranges

Sweep magnification:x10

Sweep magnification:±3%

Sensitivity and Frequency:20Hz-30MHz(VERT)

Auto. Norm:0.5div(INT), 0.5Vp-p(EXT) TV-V,

TV-H: At least 1 div or 1 Vp-p

Input impedance: 1MΩ

X-Y Phase difference : ≤3°,DC-50kHz

Calibration waveform: Frequency:1kHz

±20%,

voltage :0.5V ±10%

Power supply:220V/110V ± 10%; 50/60HZ

Dimensions:310(W) X 130(H) X 370(D)mm

Weight:8.5KG
