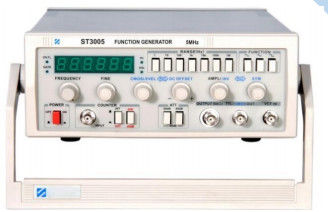

Function Generator Sine Triangle Square Output Waveform

Large Image : Function Generator Sine Triangle Square Output Waveform

Product Details:

Place of Origin:	china
Brand Name:	JUNXI
Certification:	iso
Model Number:	JXFG-85

Contact Now

Detailed Product Description

Highlight:

Sine Function Generator

Triangle Function Generator

Square Function Generator

Technical Specification

Frequency range:0.3-3MHz

Output waveform:Sine, triangle, Square,

Positiveor negative pulse wave of positive or negative ramp.

Output Impedance:50Ω±10

Amplitude modulation:20Vp-p(open)

DC offset:0~±10V continuous adjustable

Symmetry Range:80:10~10:80

Rising Edge of square wave:100ns or 50ns Sine Wave Characteristic

Distortion:10Hz-100KHz less than 1

Frequency Response:0.1Hz to 100KHz not larger than ± 0.5dB, 100KHz to 3MHz not larger than ± 1dB

100KHz to 6MHz not larger than ± 2dB, 100KHz to 10MHz not larger than ± 3dB, 100KHz to 15MHz not larger

than ± 3.5dB TTL output

Level:TTL the low level of impulse wave is not larger than 0.4v, high level is not smaller than 2.4v

Rise time:Not larger than 30ns

Modulating frequency:400Hz internal, 01MHz external

Modulation Depth:0-85%

Deviation:0-10%

Distortion of modulation frequency:≤1.5% (fc=500KHz fm=1kHz,10%) Power output (Model with W)

Amplitude: 20Vp-pPower SWEEP

Sweep mode:Liner; logarithmic

Sweep speed:10ms~5s

Sweep ratio: ≥ 1000:1

Output amplitude:7Vp-p

Output impedance:600Ω VCF input

Output voltage:-5V~0V ± 10%

Max ratio of voltage control:1000:1

Input signal:DC-1KHz Frequency Meter

Measuring range:1Hz-20MHz

input impedance:1MΩ / 20pF

Sensitivity:10mVrms

Max input:150V(AC+DC)(attenuator included)

Input attenuation:20db

Measuring error: 0.003% ± 1digit

Power Supply:220V/110V±10%, 50/60HZ

Dimension:310X230X90mm

Weight:4 kg
