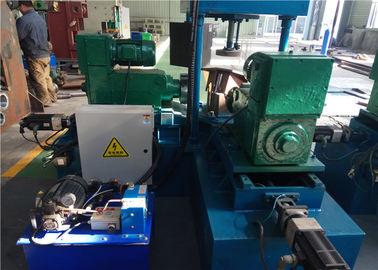

Two Side Pipe Fitting Beveling Machine High Productivity 2*2*2.6MM

Two Side Pipe Fitting Beveling Machine High Productivity 2*2*2.6MM
Two Side Pipe Fitting Beveling Machine High Productivity 2*2*2.6MM
video play

Large Image :  Two Side Pipe Fitting Beveling Machine High Productivity 2*2*2.6MM

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE
Model Number: 406
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: plastic wrapping & wooden box for Hand Portable Pipe Cutting And Beveling Machine
Delivery Time: 20-25 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10-15 SET/ MONTH
Detailed Product Description
Product Name: Seamless Or Erw Elbow Two Side Automatic Pipe Fitting Beveling Machine Total Weight Of Machine Tool: 5.2T
Machine Size: 2*2*2.6MM Type:: Auto Beveling
Key Selling Points:: High Productivity Application:: Bevel Pipe And Pipe Fitting
Hydraulic Power: 3.2kw Attachment Configuration: Workpiece Cursor
Fixture: Hydraulic Fixture
High Light:

pipe beveling equipment

,

automatic pipe beveling machine

Seamless Or Erw Elbow Two Side Automatic Pipe Fitting Beveling Machine



Model 219-406
Spindle power 15KW
Spindle speed 320/450
Servo torque 15N/M
With 10 speed ratio reducer
Screw stroke 400MM
Screw speed 5M/MIN
Hydraulic power 3.2KW
Cylinder diameter 100MM
Configuration tool 3
Or floating cutter head optional
Total weight of machine tool 5.2T
Machine size 2*2*2.6MM
Attachment configuration

Workpiece cursor



Two Side Pipe Fitting Beveling Machine High Productivity 2*2*2.6MM 0





2. Company Information:
Guozhong is manufacturer of pipe fitting and pipe fitting machine such as Cold forming elbow machine, Hot forming elbow machine, Cold forming tee machine, Beveling machine, Shot blasting machine, Marking machine, Sizing machine, Ring rolling machine. All of product have good quality, and we have our own factory, so we can guarantee the source of supply and if the machine have any needs, we will repair and guide clients for production.



3. Packaging & Delivery
Two Side Pipe Fitting Beveling Machine High Productivity 2*2*2.6MM 1

4.Processing principle of automatic double-head chamfering machine:

The working process of the double-head chamfering machine is composed of the block divider, the aligning roller way and the unloading mechanism, the active mechanism, the steel pick hook, the collecting groove, the grinding head machine, the aligning positioning plate and the pressing device.

Double-headed chamfering machine will be chamfering double hanging on the bulk fabric, inclined orbit the stopper will double block, automatic chamfering machine will distributor with the double line by root into alignment roller, roller alignment will double to keep chamfer end, double-headed chamfering machine along the inclined track down and through the alignment positioning plate into the main drive of the friction wheel, device lift the workpiece clamping pressure, start the main drive shaft for the workpiece rotation, send into grinder started chamfering, chamfering, drop pressure device, pick the steel hook will artifacts on inclined orbit, and a set of keep-off distributor will double their assigned to the next set of alignment in the table, and to keep the opposite direction,Thenext automatic chamfering machine chamfered the other end, and the last set of steel hooks fed the finished product into the collecting tank.



5.Equipment principle of automatic double-head chamfering machine:

Double-head chamfering machine, with the help of the friction between the rubber wheel and the rotary press wheel to assist the positioning and adjust the friction torque of the workpiece using the grinding wheel chamfering is the main content of the design.

Main drive mechanism the main drive mechanism is composed of the driving wheel shaft and the inert wheel shaft. The driving wheel shaft and the inert wheel shaft are respectively inlaid with a set of styrene butadiene rubber wheels. The spacing is.

Hot rolled steel products will have different degrees of bend, in order to prevent stuck between wheel and workpiece by jumping out of iron and reduce friction torque phenomenon appears, when the design will take the initiative to the input end of the shaft is fixed, two axis by grinding the two rubber wheel is fixed, the other two shaft all the rubber wheel can float up and down, move around, to complete the whole process of double-headed chamfering machine work.





6.

What is a beveling machine?

It is a metal material or part of the welding pre-processing of a machine, groove machine is the use of stainless steel, iron and other materials or parts in the edge or section of the physical or chemical treatment of geometric shape of the bevel or groove surface.


7. Contact:
Darcy Dong

Email Address: guozhong_darcy@pipefittingsmachine.com
Whatsapp/ Wechat: 0086 156 3073 1167
