Heavy Gauge Metal Slitting Line And Tube Mill Supporting Production Line

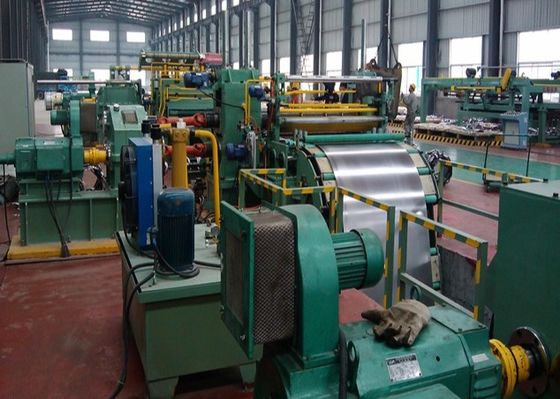

Large Image : Heavy Gauge Metal Slitting Line And Tube Mill Supporting Production Line

Product Details:

Place of Origin:	china
Brand Name:	JUNXI
Certification:	ce

Contact Now

Detailed Product Description

Brand:	Machinery	Customization:	Comprehensive Scheme Customization Of Equipment
Service:	Lifetime Maintenance	Lead Time:	Est. Time(days) 60
Model Number:	2000 Coil Slitting Machine	Name:	Heavy Gauge Slitting Line Tube Mill Line
Highlight:	heavy gauge metal slitting line , tube mill production line , metal tube mill line

Heavy Gauge Metal Slitting Line And Tube Mill Supporting Production Line

Product Overview

This high-performance, integrated production system is specialized for processing heavy-gauge metal coils (including stainless steel and carbon steel) into precise-width strips, primarily serving as a core pre-processing line for tube mill production. Designed to handle thick, high-strength materials (typically ≥3mm thickness, up to 20mm+ for heavy-duty models), it ensures consistent strip width, flatness, and edge quality.

Detailed Workflow

Step 1: Coil Loading & Feeding

Coil Handling: Hydraulic coil car lifts and positions heavy-gauge metal coils (up to 50 tons capacity) onto the decoiler
Feeding Initiation: Feeding device with anti-slip rollers and alignment guides ensures centered coil positioning

Step 2: Uncoiling, Positioning & Alignment

Uncoiling: Hydraulic-driven decoiler operates at synchronized speed to prevent deformation
Precision Positioning: Laser positioning system maintains alignment with slitting blades' centerline
Alignment Calibration: Edge-trimming auxiliary device improves accuracy for uneven coil edges

Step 3: Heavy-Gauge Slitting (Core Processing Step)

Blade Setup: High-hardness tungsten carbide or Cr12MOV blades with ≤±0.1mm width tolerance
Slitting Operation: Hydraulic pressing system prevents vibration for clean, burr-free edges
Speed Control: Inverter adjusts speed based on material thickness for optimal efficiency

Step 4: Strip Collection & Stacking

Conveying: Anti-scratch rollers transport strips to collection unit
Stacking: Hydraulic stacking table or coil rewinder with adjustable height (up to 1.5m)
Flatness Correction: Optional roller-leveling device restores strip flatness

Step 5: Packaging & Labeling

Packaging: Moisture-proof plastic film or steel plates protect strips during transport
Labeling: Complete package information including material type, dimensions, and production details

Core Advantages for Tube Mill Supporting

Heavy-Gauge Adaptability: Processes thick metal coils up to 20mm+ with reinforced frame and hydraulic systems
Precision Guarantee: ≤±0.1mm width tolerance and ≤0.05mm edge burr for quality tube forming
Automated Integration: Seamless connection to tube mill lines via conveyor system
Durability & Low Maintenance: Wear-resistant components and PLC control system with fault diagnosis

Application Scenarios

Industry	Applications
Tube & Pipe Manufacturing	ERW tubes, seamless steel tubes, stainless steel pipes for oil pipelines, construction scaffolding
Structural Steel Processing	Steel beams, columns, and automotive frame components
Specialty Metal Applications	Aerospace parts, marine equipment, and pressure vessels
