Customizable Hydrostatic Test Line For Tube Mill Steel Pipes

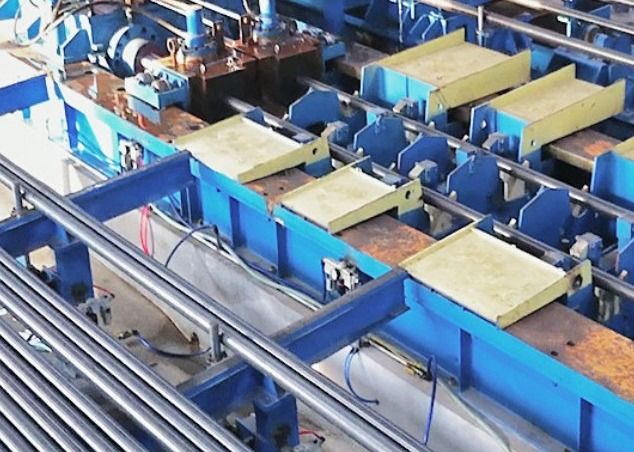

Large Image : Customizable Hydrostatic Test Line For Tube Mill Steel Pipes

Product Details:

Place of Origin:	china
Brand Name:	JUNXI
Certification:	ce

Contact Now

Detailed Product Description

Brand:	Machinery	Customization:	Comprehensive Scheme Customization Of Equipment
Service:	Lifetime Maintenance	Lead Time:	Est. Time(days) 60
Model:	8'' -20''Steel Pipe Hydraulic Tester	Name:	Water Pressure Test Tube Mill Line
Highlight:	customizable hydrostatic test line , tube mill steel pipe tester , hydrostatic test line for pipes

Customizable Hydrostatic Test Line For Tube Mill Steel Pipes

Product Overview & Company Strengths

The Water Pressure Test Tube Mill Line is a critical quality inspection system for steel pipe manufacturing, designed to conduct hydrostatic pressure testing on finished steel pipes—ensuring they meet pressure-bearing standards and leak-proof requirements for industrial applications such as oil/gas pipelines, water supply pipes, and pressure vessels.

As an integral part of tube mill production lines, this system detects hidden defects like micro-cracks and weak welds by applying controlled water pressure, helping manufacturers comply with international quality certifications (API, ISO).

Junxi Machinery offers this specialized Water Pressure Test Line under the Tendi product series—backed by years of industry expertise. We provide customizable solutions for pipes ranging from Φ50mm to Φ610mm, with every system undergoing rigorous testing before delivery to ensure reliability and long-term performance.

Technical Specifications

Model	Pipe Diameter Range	Testable Pipe Length	Max Test Pressure	Capacity (Power)	Estimated Floor Area
TD-100	Φ50 ~ Φ114 mm	6 ~ 12 m	≤50 Mpa	65 Kw	5*12 M²
TD-160	Φ60 ~ Φ168 mm	6 ~ 12 m	≤50 Mpa	65 Kw	5*12 M²
TD-220	Φ89 ~ Φ219 mm	6 ~ 12 m	≤50 Mpa	75 Kw	5*12 M²
TD-350	Φ140 ~ Φ355 mm	6 ~ 12 m	≤70 Mpa	85 Kw	6*20 M²
TD-400	Φ168 ~ Φ426 mm	8 ~ 12 m	≤70 Mpa	65 Kw	6*22 M²
TD-500	Φ219 ~ Φ508 mm	8 ~ 12 m	≤70 Mpa	85 Kw	6*22 M²
TD-600	Φ219 ~ Φ610 mm	8 ~ 12 m	≤70 Mpa	100 Kw	6*22 M²

Core Functions & Working Principle

Key Functions

Precise Pressure Control: High-precision pressure sensors and hydraulic control system maintain stable test pressure up to 70 Mpa
Adjustable Pipe Compatibility: Supports specific pipe diameter ranges with customizable clamping fixtures
Automated Testing Process: Most steps are automated for high-volume tube mill lines
Defect Alarm & Data Recording: Alerts operators to leaks and records test data for traceability

Working Principle

Pipe is loaded and clamped by sealing heads
Filled with clean water to expel air
High-pressure pump increases water pressure to test value
Pressure sensors monitor for leaks in real-time
Pipe is unloaded and drained after testing

Cooperation Advantages

Customization: Tailored to your tube mill's output and pipe specifications
Expertise: Professional guidance on test standards and system optimization
Quality Assurance: All components sourced from reliable suppliers

Post-Sales Support

On-site installation and operator training
Quick delivery of spare parts
Lifelong technical support

Application Scenarios

Oil & Gas pipeline transportation
Municipal water supply systems
Pressure vessels for boilers and chemical reactors
