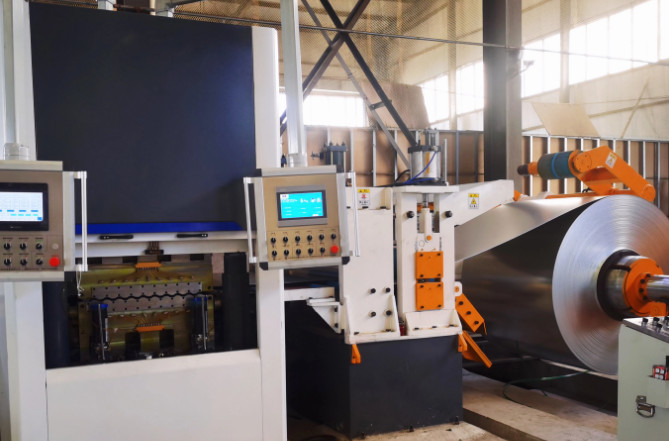

Tengdi Machinery High Precision Cross Cutting Line And Cut To Length Machine
Product Overview: High-Quality Cutting Solutions for Metal Processing
Tengdi Machinery provides high-performance cross-cutting lines and cut-to-length machines for metal coil processing. Our equipment delivers exceptional cutting precision (±0.15mm) and high cutting speeds (up to 100m/min), making it ideal for automotive manufacturing, home appliances, hardware, and metallurgy industries.
Cut To Length Machine: Definition, Functions & Categories
A cut-to-length machine processes metal coils through uncoiling, leveling, and cutting into specified lengths, followed by stacking. It converts continuous metal coils into usable flat materials for production.
Core Functions & Components
- Key Core Components: Uncoiler, pincher & leveler, gauge, cutting machine, stacker
- Auxiliary Components: Feeder, side guiding device, transition mechanism, conveyor
Equipment Categories
By Metal Material:
- Stainless steel cut-to-length machine
- Silicon steel cut-to-length machine
- Cold/hot-rolled plate cut-to-length machine
By Electronic Control Mode:
- Pneumatic cut-to-length line (medium-precision)
- NC (Numerical Control) cut-to-length line (high-precision)
Detailed Technical Parameters
| Model |
Thickness Range (mm) |
Width Range (mm) |
Cutting Length (mm) |
Cutting Precision (mm) |
Roller Numbers |
Roller Diameter (mm) |
| 3*1600 |
0.3-3 |
1600 |
300-4000 |
±0.5 |
15 |
Ф85 |
| 6*2000 |
1-6 |
2000 |
500-6000 |
±0.5 |
15 |
Ф140 |
| 8*2000 |
2-8 |
2000 |
600-8000 |
±1 |
13 |
Ф155 |
| 10*2200 |
2-10 |
2200 |
600-10000 |
±1 |
13 |
Ф160 |
| 12*2200 |
3-12 |
2200 |
800-12000 |
±1 |
11 |
Ф180 |
| 16*2200 |
4-16 |
2200 |
800-12000 |
±1 |
11 |
Ф200 |
| 20*2500 |
6-20 |
2500 |
800-12000 |
±1 |
9 |
Ф230 |
| 25*2500 |
8-25 |
2500 |
800-12000 |
±1 |
9 |
Ф260 |
Standard Workflow of Cut To Length Machine
1. Coil Lifter: Lifts and transfers metal coils to the hydraulic decoiler
2. Hydraulic Decoiler: Unrolls the metal coil at controlled speed
3. Snubber Roller: Stabilizes the uncoiled sheet
4. Pinch Roll & Pre-Leveler: Maintains tension and performs preliminary leveling
5. Loop Bridge: Buffers speed differences between stations
6. Side Guide Roller: Keeps sheet centered
7. Main Leveling Machine: Conducts fine leveling
8. Encode & Measuring Device: Accurately measures sheet length
9. Shear: Cuts sheet to specified length
10. Conveyor: Transfers cut sheet
11. Hydraulic Lift Platform: Adjusts height for stacking
12. Stacker with Blower Device: Neatly stacks sheets
13. Unload Cart: Transports finished sheets
Cooperation Advantages with Tengdi Machinery
- Customized Solutions: Tailored equipment parameters for specific needs
- Expertise & Quality Assurance: Skilled professionals ensure high standards
- Versatile Application: Suitable for multiple industries and metal materials
- Post-Sales Support: Comprehensive after-sales services including training and technical consultation
